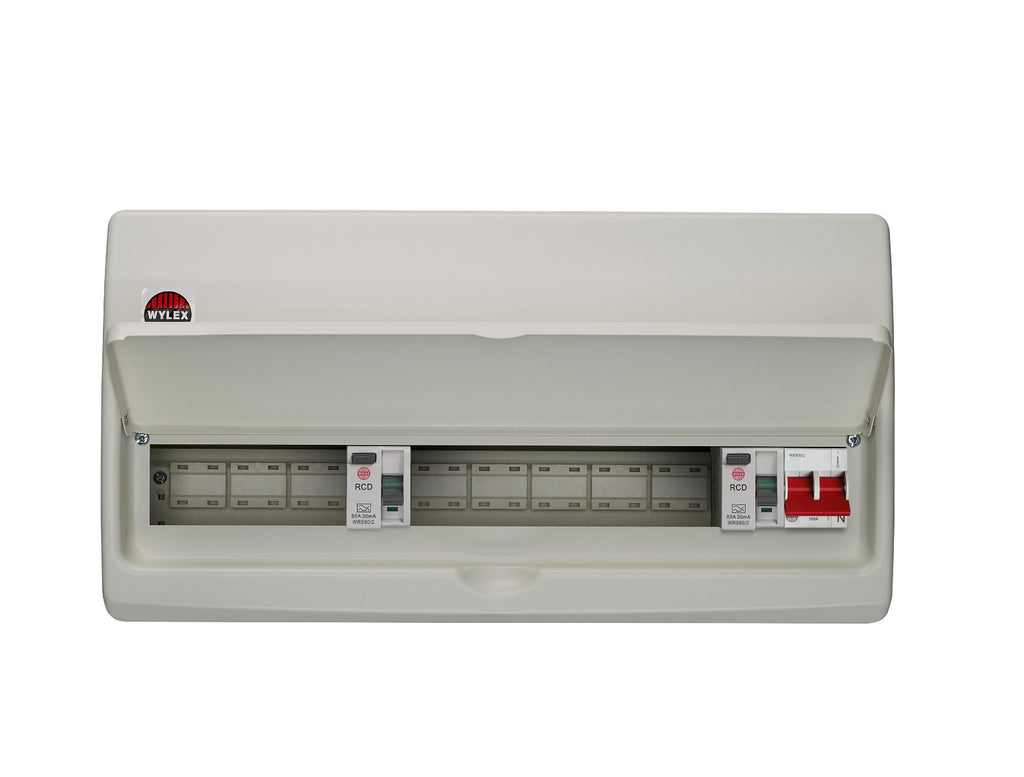

Wylex NMXISS16 16 Way Dual RCD Consumer Unit 100A Main Switch, 80A 30mA RCDs, Flexible Configuration
- 16 Way Dual RCD Consumer Unit
- 100A Main Switch
- Curved metal enclosure with knockouts
- Configurable fixed busbar
- 16W Dual RCD
- 2x 80A 30mA type A RCDs
- DIN rail supplied
- Low smoke & fume paint
- Cable entry knockouts on all sides and rear
- Dimensions (HxWxD): 235mm x 445mm x 125mm
Specification
Consumer unit type |
Dual RCD |
Depth |
125mm |
Enclosure material |
Metal |
Flexible configuration |
Yes |
Gtin |
5013601097527 |
Height |
235mm |
Number of incoming ways |
16 |
Populated |
Partially Populated |
Prouct type |
Consumer Units and Enclosures |
Regulatory |
BS EN 61439-3 |
Width |
445mm |
