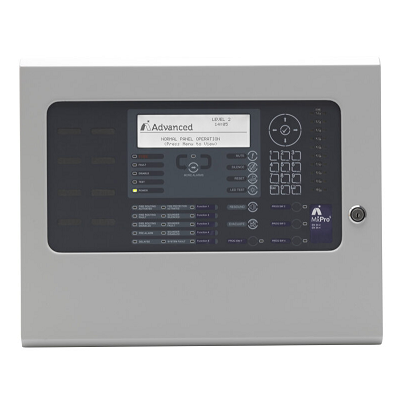

The MxPro 5 series control panels are fully expandable from 1 -2 loops and supplied with 2 onboard sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.

The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad
providing a simple select and click programming aid for engineer configuration and end user operation

Compatible with AdvancedLive (UK&I only), which is the fire panel monitoring solution that enables secure, easy, real-time management of your fire system.

Powerful cause-and-effect programming and enhanced trace diagnostics make the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the onboard alphanumeric keypad, or PC-NeT-022 configuration software.

Features:

• Connectivity to AdvancedLive (UK&I only) , Ethernet connection on-board
• Apollo, Argus Vega, Hochiki & Nittan Evolution protocol support.

• Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware.
• Dual flash-based microprocessor technology with real-time clock onboard.
• Dedicated USB & RS232 serial port for direct PC or modem connection.
• Installer friendly Auto-learn, Loop Detection and Onboard Scope facilities for ease of commissioning and fault finding.
• Graphical display configurable for virtually any language
• Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination.
• Fully programmable via the onboard alphanumeric keypad, or PC configuration tools.
• Integral ‘P-Bus’ for system expansion via available option cards
• Advanced networking, peer-to-peer system, with up to 2000 zones
• Programmable push buttons
• Rack-mount options

• Global compliance
• 3-year warranty
• Fully programmable
• Installer's logo application

Specification:

• Base technology : Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets
• Display : White backlit 240 x 64 graphical LCD
• LED Indicators : 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 12 bi-colour (Fault & System)
• Controls Protocols  : Alpha numeric keypad permitting Navigation, Reset, Mute, Silence, Resound, Evacuate, and 4 x programmable push buttons
• Protocol : Apollo (Soteria / XP95 / Discovery), Argus Vega, Hochiki ESP Evolution
• Number of Fire Zones : 2000 (200 per individual panel)
• Number of Loops : Dedicated 1-2 loop control panel
• Devices per Loop : Protocol dependent
• Loop Current : 500mA per loop
• On-Board Sounder Circuits : 2 x 1 Amp programmable
• On-Board Relays : 2 x 1 Amp 30v AC/DC programmable (10mA, 5v min) - expandable to 4 using MXP-507
• Auxiliary Supply : 1 x 24v 500mA
• Programmable Input : 1 x monitored programmable input on-board
• Programmable Key Switch Inputs : 18 volt free inputs

• otal Available Output Current : 5A maximum available for loop current + sounder outputs + auxiliary supply
• Mains Supply : 200 - 240v 50-60 Hz AC (+10%, -15% tolerance) 1.4A max
• Charger Current : 2A temperature compensated
• Ethernet port : 10-Base-T, 100-Base-T: Providing AdvancedLive connectivity (UK&I only)
• Serial Port : 1 x On-board RS232 connection for PC, modem, IP, or portable printer
• USB Interface : 1 x USB B type connection for PC communication
• Programming : On-board keypad or PC running Windows tools
• Event Log : 5000 event & diagnostic + 500 fire
• Networking : Optional plug in Network Card (MXP-503 - Standard, or MXP-509 - Fault-Tolerant)

• Enclosure / Colour : Steel IP30 / RAL7035
• Metalwork Options : Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount
