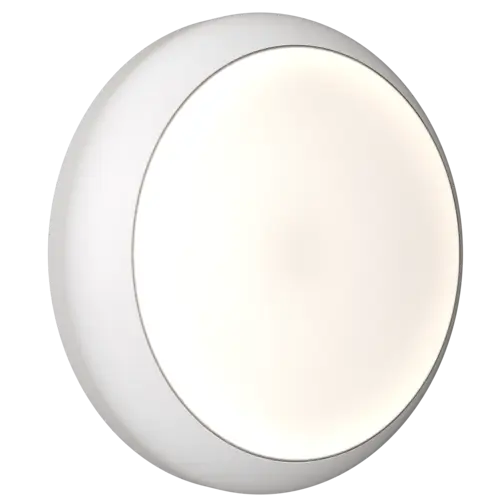

Slim, modern all-polycarbonate bulkhead and up to 145lm/W efficiency. Opal diffuser with white, chrome, satin chrome or graphite trim ring. CCT selectable 3000K, 4000K and 6500K with 3 power outputs. Gear tray bezel & 4x 20mm conduit entries ensure quick install.

PRODUCT FEATURES:

• Instant light output and unlimited switching
• Built in spirit level for ease of installation with horiztonal conduit
• Slim and modern bulkhead suitable for residential, commercial and industrial applications as well as ancillary areas
• Compatible with XPRESS emergency and microwave sensors
• High efficiency up to 145lm/W
• All polycarbonate construction with opal diffuser and white trim ring with optional chrome, satin chrome or graphite trim ring accessories
• CCT selectable between 3000K, 4000K and 6500K and power selectable; offering a choice of 3 outputs, in one luminaire
• Gear tray located on the bezel, allowing the base to be installed and then the bezel connected, this coupled with 4x 20mm conduit entry points on base ensure a quick and simple installation
• Updated to work with XPRESS Emergency & Microwave sensors

TECHNICAL INFORMATION:

• Wattage: 8 - 16W
• Lumens Delivered: (4000K) 9W: 1200m 12W: 1800lm 16W: 2300lm
• Lm/W: (4000K) 9W: 135lm/W 12W: 145lm/W 16W: 145lm/W
• Beam Angle: 110
• CRI: 80
• CCT: 3000/4000/6500K
• Input: 220-240V
• Operating Temp: -20°C - 40°C
• Light Source: LED
• Colour / Finish: White

• Class Protection: 2
• Internal / External: Internal / External
• Surface / Recessed / Suspended: Ceiling, Wall

• Diameter: 325 mm
• Height: 85 mm
