Ansell AVAS5/1/B Vasco EVO CCT Multi Wattage 1500mm Black
Aluminium Bi-Directional Linear LED Luminaire

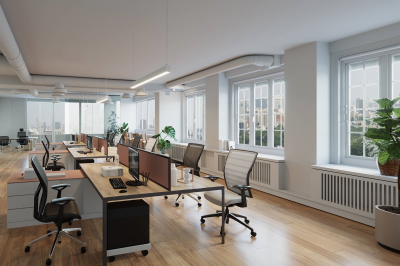

Ideal for educational, commercial, and retail environments, this high-performance linear LED luminaire offers both style and functionality. Designed for surface or suspended installation, it delivers superior efficiency and flexibility with selectable output and colour temperatures.
Key Features:
-
High Efficiency: Up to 150 lm/W (with UGR diffuser – AVAS*/1/UGR)
-
Selectable Output & CCT: Dual power and CCT selectable (3000K / 4000K) options in one luminaire
-
Bi-Directional Lighting: Standard 30% upward / 70% downward light distribution for balanced illumination
-
Downward-only mode available (output adjusted accordingly)
-
-
Opal diffuser included as standard for optimal light uniformity
-

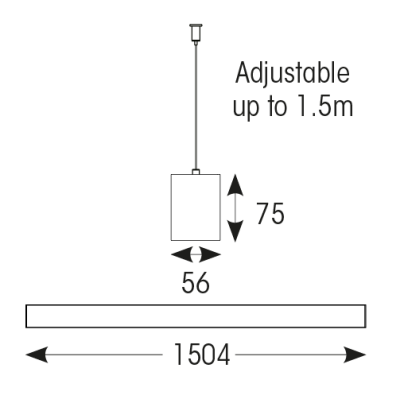

Easy Installation: Supplied pre-wired with 1.5m cable and adjustable suspension kit
-

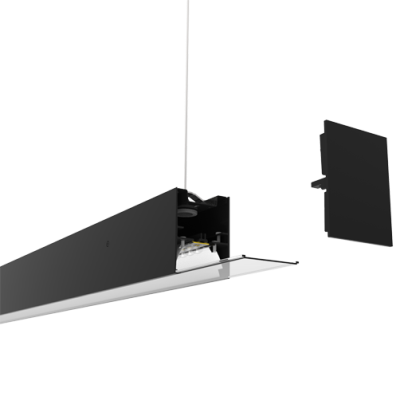

End cap accessory available
Technical Specifications:
| Specification | Details |
|---|---|
| Wattage | 25W – 40W |
| Luminous Output | 2500lm - 4500lm (4000K) / 3300lm - 6400lm (4000K w/ AVAS5/1/UGR) |
| Efficiency | 105lm/W (150lm/W w/ AVAS5/1/UGR) |
| Beam Angle | 110° |
| CRI | 80 |
| CCT Options | 3000K / 4000K |
| Input Voltage | 220–240V |
| Operating Temperature | -20°C to +45°C |
| Light Source | LED |
| Finish | Black Aluminium |
| IP Rating | IP40 |
| IK Rating | IK06 |
| Protection Class | Class I |

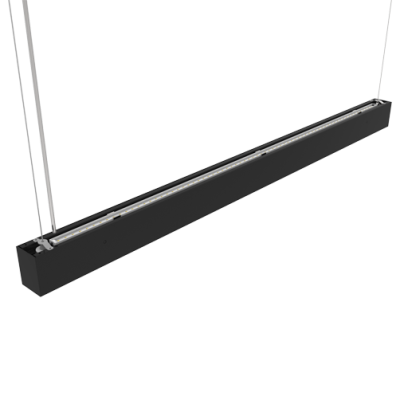

| Installation | Surface / Suspended |
| Lumen Maintenance | L80 100,000 |
| Warranty | 5 Years |
| Certifications | CE Marked |
| Height | 75 mm |
