Product Description

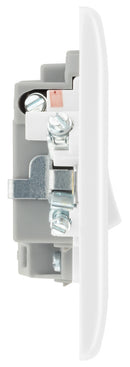

This switched and fused 13A connection unit provides an outlet from the mains containing the fuse, and is ideal for spur circuits and hardwired appliances.

This unit has a high resistance to fading, discolouration and scratches, with anti-microbial properties proven to reduce bacterial development and inhibit the growth of of infectious diseases.
Finished with softly rounded edges and screw caps for a sleek appearance.

Technical Details

• Colour: White
• Current Rating: 13A
• Dimensions: (H)86 mm x (W)86 mm
• Voltage Rating 230V
• Double pole
• Terminal Capacity Earth 1 x 6.0

• Terminal Capacity Live Neutral 3 x 2.5 2 x 4.0

More Details

• Easy to install, supplied with fixing screws and installation instructions
• Ideal for spur circuits and hard wired power appliances
• Angled colour coded terminals for ease of installation
• Captive screws prevent screw loss
• Screw covers for sleek appearance
• Embossed with 'Fuse' on the fuse cover
• Fits 25mm box, ideal for quick and easy retro-fit
• Manufactured using high grade thermoset Urea with inherent anti-microbial properties
• Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
• Round edge spacer option available to covert for flex out option (8CGS)
