Product Details

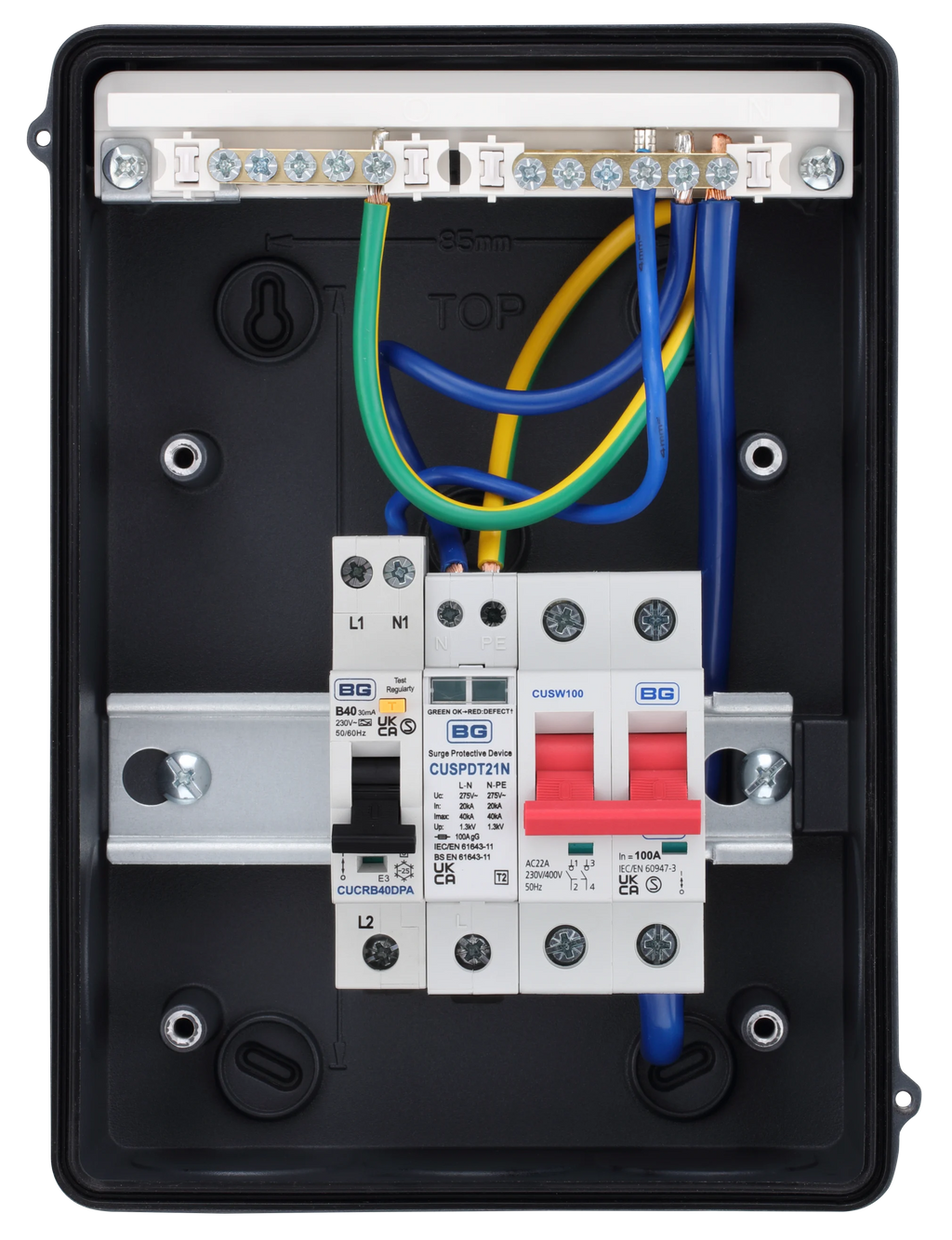

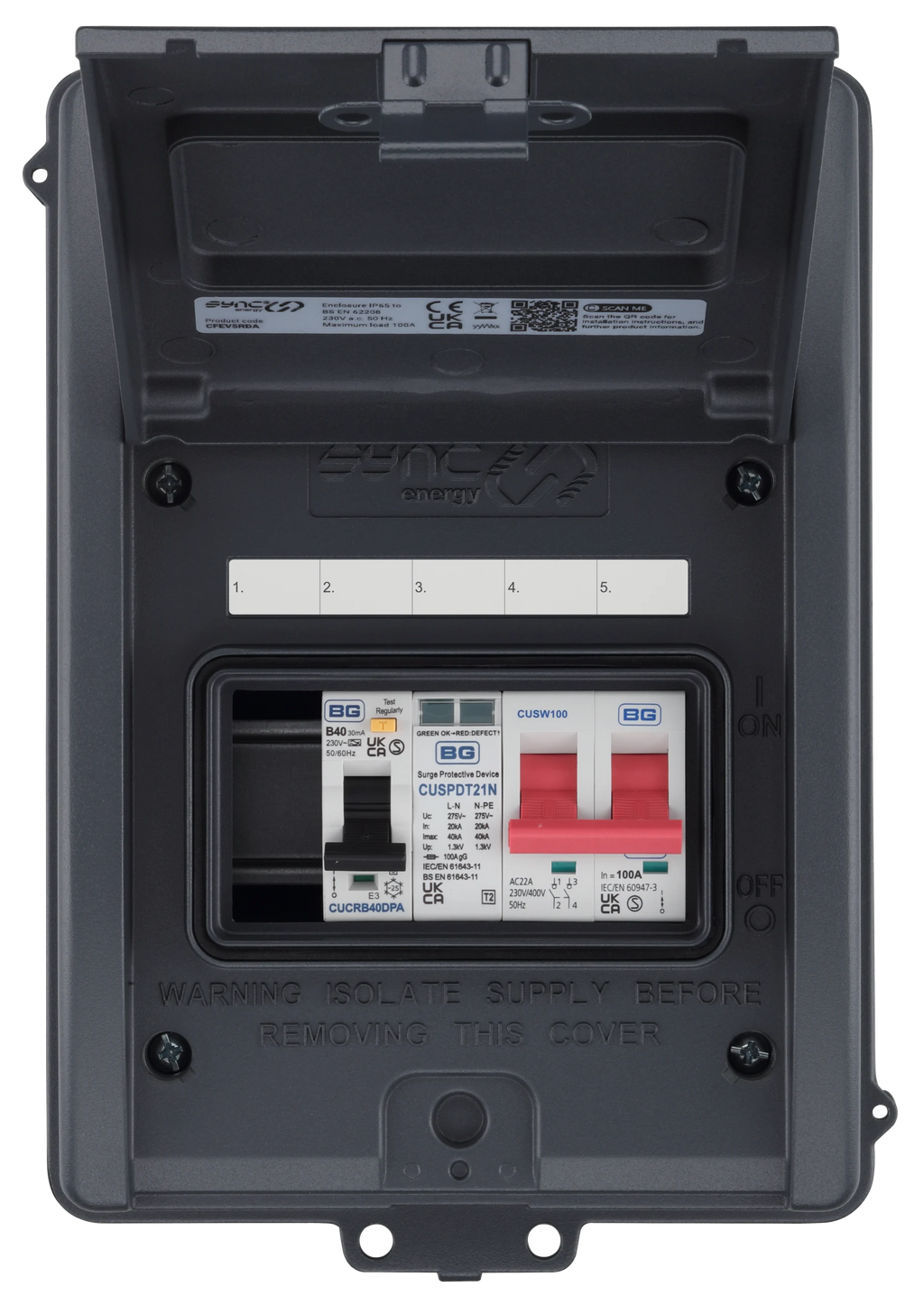

• POPULATED WITH: 1 x 40A 30mA Type A RCBO Double Pole, 1 x 100A Main Switch, 1 x Type 2 SPD

• INCOMER: 100A MAIN SWITCH

• MODULES / WAYS : 5 MODULE / 5 WAYS


• IP RATING / UV STABILITY: IP65 / UV STABLE


• COMPLIANCE : 18TH EDITION AMENDMENT 2 BS7671

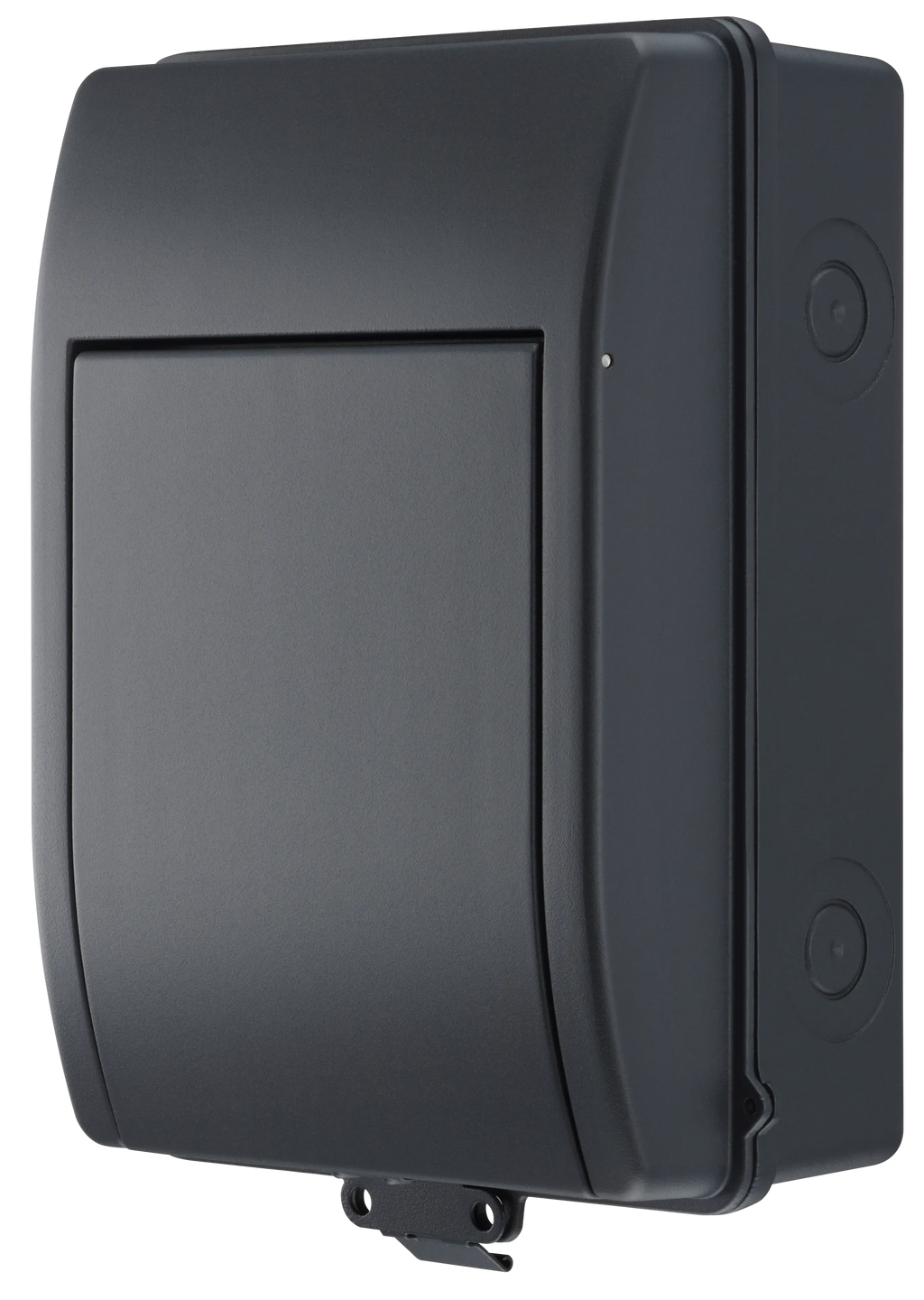

• CONSTRUCTION & COLOUR : 2 MM CAST ALUMINIUM - ADC12, RAL 7016 ANTHRACITE GREY, RAL9016 GLOSS WHITE


• SECURITY : PADLOCK FACILITY BUILT INTO FRONT COVER (PADLOCK NOT SUPPLIED) ENCLOSURE CAN BE WIRE SEALED TO STOP THE FRONT COVER BEING REMOVED BY USING BUILT-IN HOLE TABS (SEALS NOT SUPPLIED)


• COVER BLANKS : 1


• CUTOUTS & KNOCKOUTS : M20, DRILLABLE TO M32. TOP & BOTTOM x3, SIDES x2, BASE x1


• WEIGHT : 2 KG
