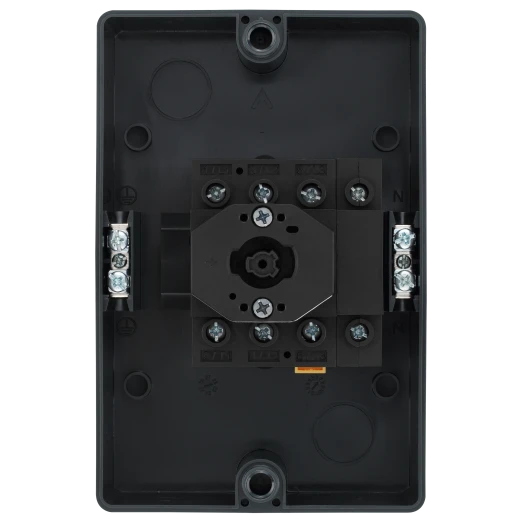

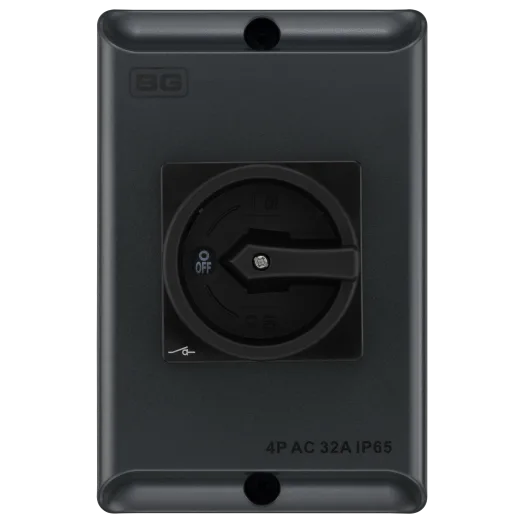

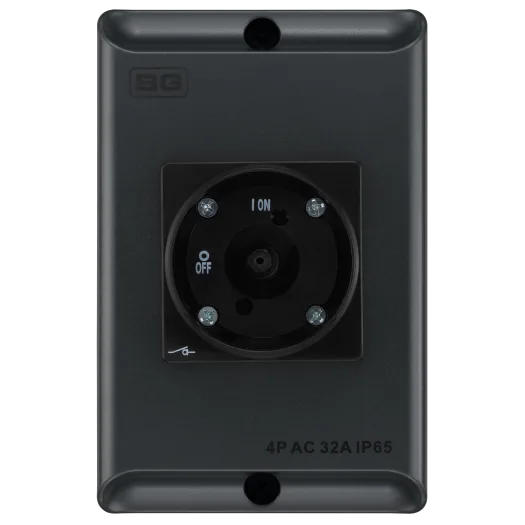

BG CPRSD432AG-01 32A AC Rotary Switch Isolator in Anthracite Grey
- IP65
- Black padlockable handle
- Colour matched to complement the Sync Energy EV Charger

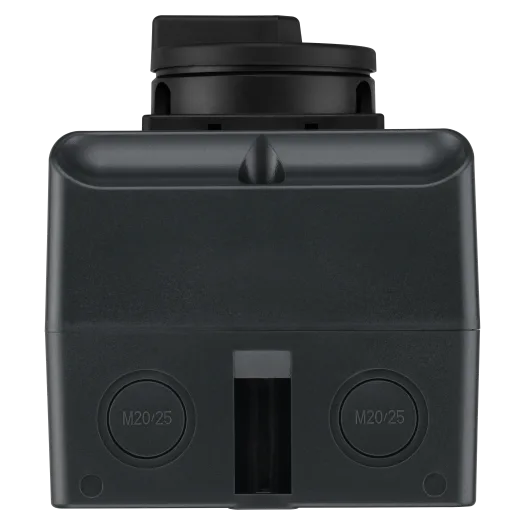

- Easy cable access via M20/25 knock-outs (top and bottom)
- Captive retained cover screws
- Switch interlocked with lid to prevent opening in ON position
- Insulated
| General Colour | Anthracite Grey |
| Fixing Screws Supplied | No |
| Number of Cable Entries | 4 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Switch Style Type | Rotary |
| Details per face (Size/number) | M20/25 2 /Top 2 Bolt |
| Switch Indicator Type | On/Off/Locked |
| witch Indicator Colour | Black |
| Switch Type (Ways & Poles) | 4 Pole |
| Number Of Wall Fixing Positions | 4 |
| Fitted Lock | No |
| Terminal Type | Screw |
| Endurance Operations - Electrical | 3000 |
| Endurance Operations - Mechanical | 15000 |
| IP Rating | IP65 |
| IK Rating | IK10 |
| Operating Voltage (V) | 230, 400 |
| Current Rating (A) | 32 |
| Operating Temperature (°C) | -25 to +70 |
| Frequency (Hz) | 50-60 |
