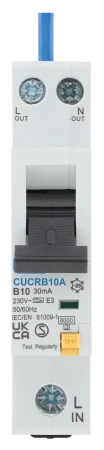

BG CUCRB10A 30mA Type A 10A Compact B curve Single pole RCBO
This BG 10A 30mA Compact B Curve Type A Single pole RCBO is for protection from short circuit, overload and earth leakage faults
Features:
-
For Use with BG Fortress consumer units
-
Positive contact status indication
-
B curve
-
Device capable of being locked in 'ON' or 'OFF' position using a device lock
-
Size of an MCB
-
DIN rail mountable
-
Type A
-
6kA breaking capacity
-
Integrated Blue neutral lead
- Manual test button
Technical Specifications:
- General Colour: Light Grey
- Timer Override: N/A
- Timer Type: N/A
- Endurance Operations - Electrical: 2000
- Reponse Time (nS): 0
- Surge Rating (kV): N/A
- Surge Uc: 0
- Surge Uoc: N/A
- Surge Up: N/A
- Rated Sensitivity (mA):30mA
- RCD Mechanism Type: Electro/Mechanical
- Trip Speed (mS): <0.1s
- RCD Type: Type A
- Device: RCBO
- Operating Voltage (V): 230
- Current Rating (A): 10
- Operating Temperature (C): -5°C to +40°C
- Rated Trip Current (mA): 3-5 X In
- Switch State: On/Off
- Surge Device: No
- Height (mm): 90
- Width (mm) : 18
- Depth (mm): 77
