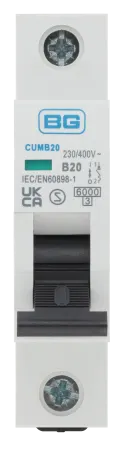

BG CUMB20 Bidirectional 20A, B Curve, MCB, Single Pole, 6kA,1 module
This BG 20A B curve, single pole 6 kA MCB is for protection from short circuit and overload faults
Features:
-
For Use with BG consumer units
-
Positive contact status indication
-
B curve
-
Device capable of being locked in 'ON' or 'OFF' position using a device lock
-
DIN rail mountable
-
6kA breaking capacity
-
Large terminal capacity
Technical Specifications:
- General Colour: Light Grey
- Timer Override: N/A
- Timer Type: N/A
- Endurance Operations - Electrical: 10000
- Reponse Time (nS): 0
- Surge Rating (kV): N/A
- Surge Uc: 0
- Surge Uoc: N/A
- Surge Up: N/A
- Rated Sensitivity (mA): N/A
- RCD Mechanism Type: Thermal/Electromagnetic
- Trip Speed (mS): 0.04 - 13 SEC
- RCD Type: N/A
- Device: MCB
- Operating Voltage (V): 230
- Current Rating (A): 20
- Operating Temperature (C): -5°C to +40
- Rated Trip Current (mA): 3-5 X In
- Switch State: On/Off
- Surge Device: No
- Height (mm): 85
- Width (mm) : 18
- Depth (mm): 76
