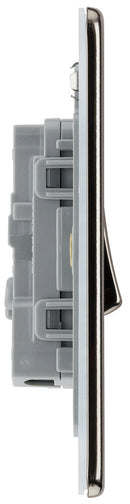

BG FBN12 Screwless Flatplate Black Nickel Single Switch, 10Ax 2 Way
Product Description
This black nickel finish 10A single light switch will operate one light switch in a room. The 2 way switching allows a second switch to be added to the circuit to operate the same light from another location (e.g. at the top and bottom of the stairs).
This switch has a screwless flatplate that clips on and off and sits flush against the wall, making it ideal for modern interiors.
Technical Details
Standard(s): | BS EN 60669-1 |
Contact Gap: |
3.0mm minimum |
Rating: | 10 Amp, 250V~(10AX – no derating for inductive or fluorescent loads) |
Terminal Capacity - L & N: | 4 x 1.0mm ² 4 x 1.5mm ² 2 x 2.5mm ² 1 x 4.0mm ² |
RoHS Directive: | No |
WEEE Directive: | No |
Mounting Box Depth (Min): | 16mm |
Fixing Centres: | 60.3mm |
Size: | 87.4mm x 87.4mm x 21.2mm |
More Details
- Easy to install, supplied with fixing screws and installation instructions
- 2 way switching allows for a second switch position in a circuit
- Screwless front plate clips on and off easily and has a sleek, flat profile
- Moisture control gasket, prevents tarnishing from new plaster
- No visible plastic around switch
- Captive, backed out terminal screws for fast installation and to prevent screw loss
- Minimum mounting box depth 16mm
Specification
Screwless |
Yes |
Switched |
Yes |
Unit size |
1 Gang |
