Product Description

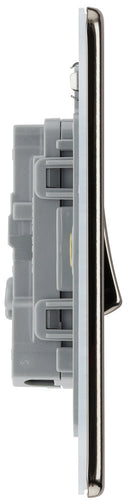

This black nickel finish 10A intermediate light switch should be used as the middle switch when you need to operate one light fom 3 different locations, such as either end of a hallway and at the top of the stairs.

This switch has a screwless flatplate that clips on and off and sits flush against the wall, making it ideal for modern interiors.

Technical Details

Standard(s):	BS EN 60669-1
Contact Gap:	3.0mm minimum
Rating:	10 Amp, 250V~(10AX – no derating for inductive or fluorescent loads)
Terminal Capacity - L & N:	4 x 1.0mm ² 4 x 1.5mm ² 2 x 2.5mm ² 1 x 4.0mm ²
RoHS Directive:	No
WEEE Directive:	No
Mounting Box Depth (Min):	16mm
Fixing Centres:	60.3mm
Size:	87.4mm x 87.4mm x 21.2mm

More Details

• Easy to install, supplied with fixing screws and installation instructions

• Intermediate switch allows for more than 2 switches in a circuit

• Screwless front plate clips on and off easily and has a sleek, flat profile

• Moisture control gasket, prevents tarnishing from new plaster

• No visible plastic around switch

• Captive, backed out terminal screws for fast installation and to prevent screw loss

• Minimum mounting box depth 16mm
