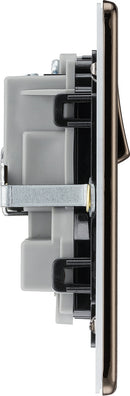

BG FBN22B Screwless Flatplate Black Nickel Double Switched 13A Power Socket
Product Description
This black nickel finish 13A double switched socket has a sleek flat profile that clips on and off for a screwless premium finish, with no visible plastic around the switches.
The clip off frontplate makes decorating easier, whilst the moisture control gasket prevents tarnishing from new plaster.

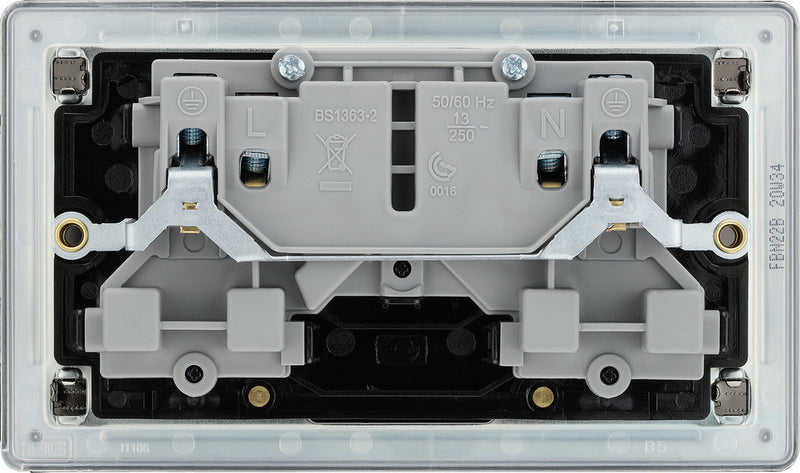

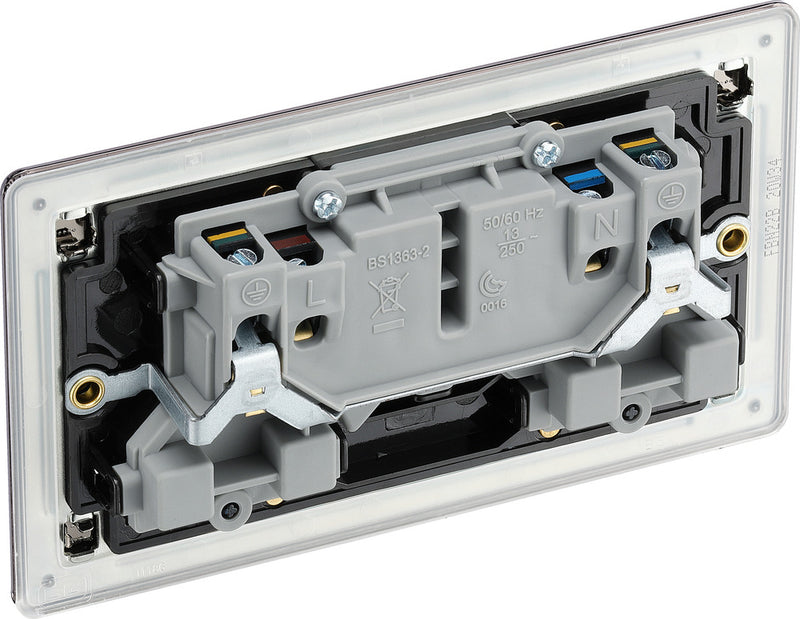

This socket has been designed with angled in line colour coded terminals and backed out captive screws for ease of installation, and fits a 25mm back box making it an ideal retro-fit replacement for existing sockets.
Technical Details
| Standard(s): | BS 1363 Part 2 |
| Rating: | 13 Amp 250V~ |
| Switch type: | Double pole |
| Contact gap: | 3.0mm minimum |
| Terminal Capacity - L & N: | 3 x 2.5mm ² 2 x 4mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Mounting Box Depth (Min): | 25mm |
| Fixing Centres: | 120.6mm |
| Size: | 147.9mm x 87.4mm x 31mm |
More Details
-
Easy to install, supplied with fixing screws and installation instructions
-
Screwless front plate clips on and off easily
-
Moisture control gasket, prevents tarnishing from new plaster
-
No visible plastic around switches
-
Sleek flat profile
-
Angled, colour coded in-line terminals provide easy access for quick installation
-
Fits 25mm box, ideal for quick and easy retro-fit
-
Twin earth fitted as standard for high integrity circuits
-
Captive screws prevent screw loss
-
Black insert
Specification
Screwless |
Yes |
Switched |
Yes |
Unit size |
2 Gang |
