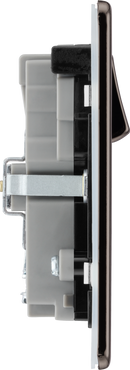

BG FBN22UAC22B Screwless Flatplate Black Nickel Double Switched Single Pole Socket with USB A+C (22W)
Product Description
The BG Screwless Flatplate range has a slimline design with a clip on/off front
plate for a sleek and screwless finish. The faceplates are simple to remove
when decorating for a practical and convenient solution.
This innovative power socket with integrated 'fast charge' USB-A and
USB-C ports can replace any standard socket - a neat solution with no loss of
valuable power sockets.
- 13A Power Sockets with integrated ‘fast charge’ USB-A & USB-C ports.
- Supports PD and QC charging protocols and outputs the best voltage & current for optimum charging.
- Smart Charging - Intelligently adjusts the voltage to give devices the power they need, when they need it, without overcharging.
- Compatible with all smartphone brands including Apple, Samsung, Google and Huawei.
- Screwless front plate clips on and off easily and has a sleek flat profile.
- Moisture control gasket prevents tarnishing from new plaster.
- Angled, colour coded terminals with captive screws.
- Twin earth for high integrity circuits.
- Minimum mounting box depth: 25mm. .
Technical Details
| Input Requirement | Input voltage range | 200-240Vac±10% |
| Input frequency range | 50/60Hz | |
| Input current | 1A Max | |
| Turn on delay time | ≤1S | |
| Input Protection | Input current protection | 2A Fuse |
| USB C Output | Output power | 21.6W max |
| Output | 5V/3A; 9/2.4A; 12V/1.5A; 15V/1.4A; 20V/1A | |
| Charge protocols | PD3.0; QC3.0; Apple2.4A; Sumsung 2.0; | |
| Samsung AFC; Huawei FCP; BC1.2 | ||
| USB A Output | Output power | 21.6W max |
| Output | 5V/3A; 9V/2.4A; 12V/1.5A | |
| Charge protocols | QC3.0; Apple2.4A; Samsung2.0A; | |
| Samsung AFC; Huawei FCP; BC1.2 | ||
| If both USB-C and USB-A are plugged in | USB-C Support 12W (5V/2.4A); | |
| USB-A Support 12W (5V/2.4A); | ||
| Protection | DC Output Over Current Protection | Recover automatically |
| DC Output Over Voltage Protection | Recover automatically | |
| Reset After Shutdown | Yes | |
| Over-temperature protection | Yes | |
| Standards & Safety Certification | CE ASTA | BS 1363-2:2016+A1:2018 |
| EN 62368-1:2020+A11:2020 | ||
| CE EMC | EN 6100-6-1:2019 | |
| EN6100-6-3:2021 | ||
| EMI | EN55032 | |
| HI-POT test | <5mA/4000V/60S |
Specification
Screwless |
Yes |
Switched |
Yes |
Unit size |
2 Gang |
