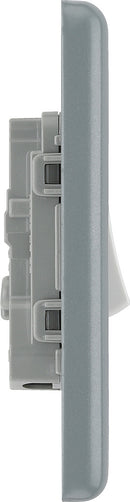

BG MC512 Metal Clad Single Switch, 10Ax 2 Way
Product Description
This Metal Clad 10A single light switch will operate 1 light switch in a room.
The 2 way switching allows a second switch to be added to the circuit to operate the same light from another location, such as 2 different entrance points in a room. This metal clad switch is made from a rugged scratch resistant steel, and is suitable for everyday use in commercial and industrial environments.
Technical Details
| Standard(s): | BS EN 60669-1 |
| Rating: | 10 Amp, 250V~(10AX – no derating for inductive or fluorescent loads) |
| Contact Gap: | 3.0mm minimum |
| Terminal Capacity: | 4 x 1.0mm ² 4 x 1.5mm ² 2 x 2.5mm ² 1 x 4.0mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Size: | 81.5mm x 81.5mm x 50mm |
Product Details
-
Easy to install, supplied with fixing screws and installation instructions
-
2 way switching allows for a second switch position in a circuit
-
Captive, backed out terminal screws for fast installation and to prevent screw loss
-
A rugged, scratch resistant range, suitable for everyday use in commercial and industrial environments
-
Mounting box with 1x 20mm knockouts in each side and rear face
-
Flat profile with rounded edges
Specification
Gtin |
5021166051205 |
Insert colour |
White |
Internal external |
Internal |
Prouct type |
Wiring Accessories |
Screwless |
No |
Size |
Iiyama |
Switched |
Yes |
Unit colour |
Stainless Steel |
Unit size |
1 Gang |
Wiring accessory type |
Switch |
