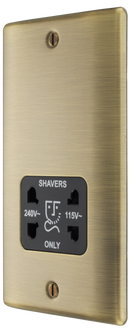

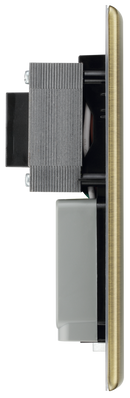

BG NAB20B 115/240V dual voltage shaver socket
-
Dual volt 115 / 240 V
-
Easy to install, supplied with fixing screws and installation instructions
-
Suitable for shavers and electric toothbrushes
-
Captive screws prevent screw loss
-
Sleek and slim premium metal with softly rounded edges
-
Sleek and slim premium metal with softly rounded edges
-
Black insert
-
Minimum mounting box depth 47mm
-
Certified to BS EN 61558-1 and BS EN 61558-2-5
- General Colour: Antique Brass
- Captive Terminal Screws: Yes
- Backed-out Terminal Screws: Yes
- Minimum Box Depth (mm): 47
- Terminal Capacity (mm²): 3 x 2.5mm²
- Front Plate Insert Colour: Black
- Fixing Screws Supplied: Yes
- Number of Earth Terminals: 1
- Terminals with Colour Coding Print: Yes
- Number of Sockets: 2
- Socket Type: Z - 2P UK Shaver
- Number of Switches: 0
- Screw Caps: No
- Switch Type (Ways & Poles): N/A
- Fixing Centres (mm): H-120.6
- IP Rating: IP41
- Operating Voltage (V): 220-240
- Height (mm) : 146
- Width (mm) : 86
- Depth (mm) : 46
