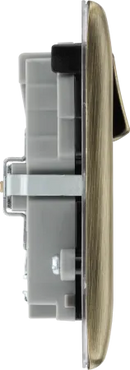

BG NAB22UAC22B Double switched single pole, with USB A + C (22W)
- Free your sockets and charge all your devices - Ideal for mobile phones, tablets and other USB chargeable devices
- 22W, variable voltage fast charging with PD & QC charging protocols for Android and iOS devices, with charge shared across two outlets - 1 x Type A, 1 x Type C
- Smart USB - Standby mode when device is fully charged; AutoDetect's the USB device and adjusts charging pattern to suit; protective overload function
- Angled colour coded terminals for easy identification and captive screws to prevent screw loss
- Delivers 50% charge to mobile phones in just 30 minutes
- Ideal for charging smartphones and tablets quickly and efficiently
- Charge up 70% faster than standard 5V charging
- Twin earth fitted as standard for high integrity circuits
- Sleek and slim premium metal with softly rounded edges
- Moisture control gasket protects metal edges from tarnishing
- General Colour: Antique Brass
- Captive Terminal Screws: Yes
- Backed-out Terminal Screws: Yes
- Minimum Box Depth (mm): 25
- Terminal Capacity (mm²): 3 x 2.5mm²
- Front Plate Insert Colour: Black
- Fixing Screws Supplied: Yes
- Number of Earth Terminals: 2
- Terminals with Colour Coding Print: Yes
- Number of Sockets: 2
- Number of Switches: 2
- Screw Caps: No
- Switch Type (Ways & Poles): Single Pole
- USB Ports: 1 x Type A / 1 x Type C
- Fixing Centres (mm): W-120.6
- USB Power (W): 22
- Maximum USB Power (W): 22
- Height (mm): 86
- Width (mm): 146
- Depth (mm): 32.1
Specification
Gtin |
5050765250030 |
