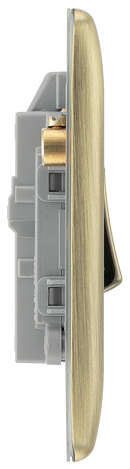

BG NAB31 20A, double pole, with indicator
-
20A Rated
-
Easy to install, supplied with fixing screws and installation instructions
-
Suitable for use with refrigerators, water heaters, central heating boilers and many other fixed appliances
-
Double Pole switching for the peace of mind of a safer installation
-
Colour coded terminals for easy identification
-
Captive, backed out terminal screws for fast installation and to prevent screw loss
-
Flush LED power indicator
-
Sleek and slim premium metal with softly rounded edges
-
Moisture control gasket, prevents tarnishing from new plaster
-
Minimum mounting box depth 25mm
-
General Colour : Antique Brass
-
Captive Terminal Screws: Yes
-
Backed-out Terminal Screws: Yes
-
Minimum Box Depth (mm): 25
-
Terminal Capacity (mm²): 2 x 2.5mm², 1 x 4mm², 1 x 6mm²
-
Fixing Screws Supplied: Yes
-
Terminals with Colour Coding Print: Yes
-
Number of Switches: 1
-
Screw Caps: No
-
Switch Style Type: Rocker
-
Switch Type (Ways & Poles): Double Pole
-
Switch Location Position: Wall
-
Fixing Centres (mm): W-60.3
-
IP Rating: IP20
- Operating Voltage (V) : 220-240
- Switch State : On/Off
- Height (mm) : 86
- Width (mm) : 86
- Depth (mm) : 22.9
Specification
Gtin |
5050765044509 |
Downloads
Download product data sheets
