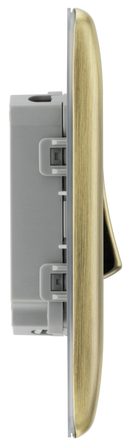

BG NAB42 Double, 2 way switch
-
20A 16AX Rated
-
Easy to install, supplied with fixing screws and installation instructions
-
2 way switching allows for a second switch position in a circuit
-
Captive, backed out terminal screws for fast installation and to prevent screw loss
-
Sleek and slim premium metal with softly rounded edges
-
No visible plastic around switches
-
Moisture control gasket, prevents tarnishing from new plaster
-
Minimum mounting box depth 16mm
-
Certified to BS60669-1
-
General Colour: Antique Brass
-
Captive Terminal Screws : Yes
-
Backed-out Terminal Screws: Yes
-
Minimum Box Depth (mm): 16
-
Terminal Capacity (mm²): 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm²
-
Fixing Screws Supplied: Yes
-
Terminals with Colour Coding Print: No
-
Number of Switches: 2
-
Screw Caps: No
-
Switch Style Type: Rocker
-
Switch Type (Ways & Poles): Two Way
-
Switch Location Position: Wall
-
Fixing Centres (mm): W-60.3
-
IP Rating: IP20
- Operating Voltage (V : 220-240
- Switch State : On/Off
- Height (mm) : 86
- Width (mm) : 86
- Depth (mm) : 23.1
