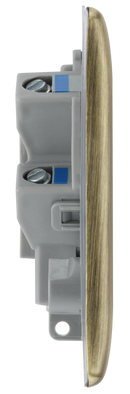

BG NAB54 Unswitched and fused
-
13A Rated
-
Easy to install supplied with fixing screws and installation instructions
-
Ideal for spur circuits and hard wired power appliances
-
Angled colour coded terminals provide easy access for quick installation
-
Captive screws prevent screw loss
-
Sleek and slim premium metal with softly rounded edges
-
Moisture control gasket prevents tarnishing from new plaster
-
Embossed with 'Fuse' on the fuse cover
-
Certified to BS 1363 Part 4
-
General Colour: Antique Brass
-
Fixing Screws Supplied: Yes
-
Captive Terminal Screws : Yes
-
Backed-out Terminal Screws: Yes
-
Number of Switches: 0
-
Screw Caps: No
-
Switch Style Type: N/A
-
Switch Type (Ways & Poles): N/A
- Minimum Box Depth (mm) : 35
- Terminal Capacity (mm²) : 2 x 6.0mm², 3 x 2.5mm², 3 x 4mm²
- Height (mm) : 86
- Width (mm) : 86
- Depth (mm) : 35
Specification
Gtin |
5050765248051 |
