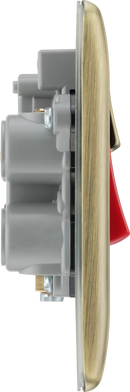

BG NAB70B 45A double pole, with switched socket and indicators
-
45A and 13A Rated
-
Easy to install supplied with fixing screws and installation instructions
-
13A socket for additional appliance outlet
-
Double Pole switching for the peace of mind of a safer installation
-
Twin earth fitted as standard for high integrity circuits
-
Colour coded terminals for ease of identification
-
Flush LED power Indicator above socket and switch
-
Sleek and slim premium metal with softly rounded edges
-
Moisture control gasket prevents tarnishing from new plaster
-
Certified to BS4177
-
Front Plate Insert Colour : Black
-
General Colour: Antique Brass
-
Fixing Screws Supplied: Yes
-
Number of Earth Terminals: 2
-
Terminals with Colour Coding Print: Yes
-
Captive Terminal Screws: Yes
-
Backed-out Terminal Screws: Yes
-
Number of Sockets: 1
-
Number of Switches: 2
-
Screw Caps: No
-
Main Power Indicator: Yes
-
Switch Type (Ways & Poles): Double Pole
-
Fixing Centres (mm): W-120.6
-
Minimum Box Depth (mm): 47
-
Operating Voltage (V): 220-240
- Terminal Capacity (mm²) : 4 x 4mm²
- Height (mm) : 86
- Width (mm) : 146
- Depth (mm) : 31.6
Specification
Gtin |
5050765044523 |
Downloads
Download product data sheets
