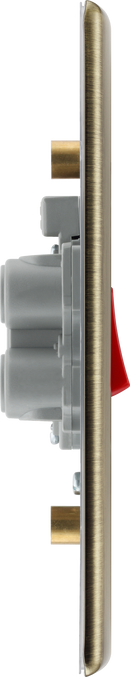

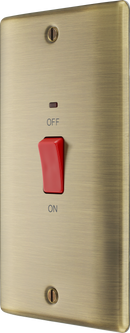

BG NAB72 45A, double pole, large plate, with indicator
-
45A Rated
-
Easy to install, supplied with fixing screws and installation instructions
-
Ideal for cookers and ovens
-
Double Pole switching for the peace of mind of a safer installation
-
Twin earth fitted as standard for high integrity circuits
-
Captive screws prevent screw loss
-
Flush power indicator
-
Sleek and slim premium metal with softly rounded edges
-
Moisture control gasket, prevents tarnishing from new plaster
-
Minimum mounting box depth 47mm
-
General Colour: Antique Brass
-
Captive Terminal Screws: Yes
-
Backed-out Terminal Screws: Yes
-
Minimum Box Depth (mm): 47
- Terminal Capacity (mm²) : 1 x 16mm², 3 x 6.0mm², 4 x 4mm²
-
Fixing Screws Supplied: Yes
-
Terminals with Colour Coding Print: Yes
-
Number of Switches: 1
-
Screw Caps: No
-
Switch Style Type: Rocker
-
Switch Type (Ways & Poles): Double Pole
-
Switch Location Position : Wall
- Fixing Centres (mm) : H-120.6
- IP Rating : IP20
- Switch State : On/Off
- Height (mm) : 146
- Width (mm) : 86
- Depth (mm) : 29.3
Specification
Gtin |
5050765248082 |
Downloads
Download product data sheets
