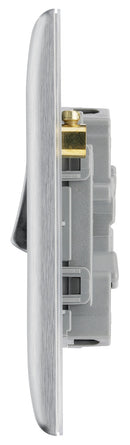

BG NBS44 Nexus Metal Brushed Steel Quadruple Switch, 10Ax 2 Way
Product Description
This brushed steel finish 10A quadruple light switch can operate 4 different lights, whilst the 2 way switching allows a second switch to be added to the circuit to operate the same light from another location (e.g. at the top and bottom of the stairs)
This switch has an anti-fingerprint lacquer and a sleek and slim profile, with softly rounded edges to add a touch of luxury to your decor.
Technical Details
| Standard(s): | BS EN 60669-1 |
|
Contact Gap: |
3.0mm minimum |
| Rating: | 10 Amp, 250V~(10AX – no derating for inductive or fluorescent loads) |
| Terminal Capacity - L & N: | 4 x 1.0mm ² 4 x 1.5mm ² 2 x 2.5mm ² 1 x 4.0mm ² |
| RoHS Directive: | No |
| WEEE Directive: | No |
| Mounting Box Depth (Min): | 25mm |
| Fixing Centres: | 120.6mm |
| Size: | 146.5mm x 86mm x 21.2mm |
More Details
-
Easy to install, supplied with fixing screws and installation instructions
-
2 way switching allows for a second switch position in a circuit
-
Captive, backed out terminal screws for fast installation and to prevent screw loss
-
Sleek and slim premium metal with softly rounded edges
-
Moisture control gasket, prevents tarnishing from new plaster
-
No visible plastic around switches
-
Minimum mounting box depth 25mm
-
Anti-fingerprint lacquer reduces unsightly fingerprints
Specification
Neon |
No |
Screwless |
No |
Switched |
Yes |
Unit colour |
Silver |
Unit size |
2 Gang |
