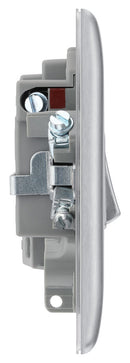

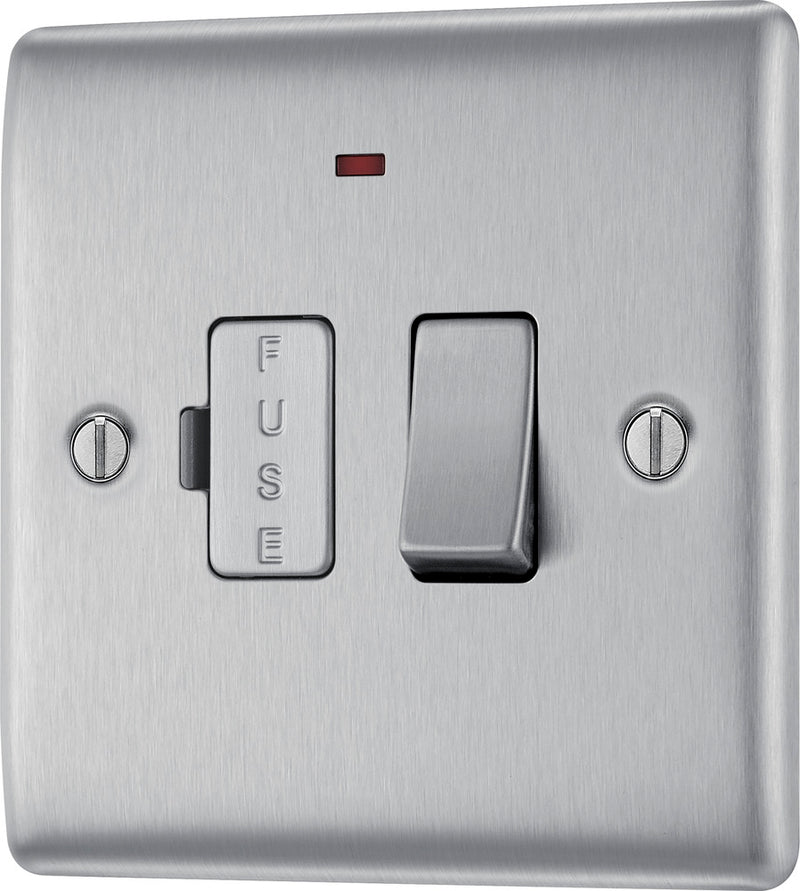

BG NBS52 Nexus Metal Brushed Steel Swi. 13A Fused Conn. Unit, w- Power Indicator
Product Description
This 13A fused and switched connection unit with power indicator provides an outlet from the mains containing the fuse, ideal for spur circuits and hardwired appliances.
This brushed steel finish unit has a sleek and slim profile, with softly rounded edges to add a touch of luxury to your decor.
Technical Details
Standard(s): | BS 1363 Part 4 |
Contact Gap: |
3.0mm minimum |
Switch type: | Double pole |
Rating: | 13 Amp 250V~ |
Terminal Capacity - L & N: | 3 x 2.5mm ² 2 x 4.0mm ² 1 x 6.0mm ² |
RoHS Directive: | No |
WEEE Directive: | No |
Mounting Box Depth (Min): | 35mm |
Fixing Centres: | 60.3mm |
Size: | 86mm x 86mm x 28.8mm |
More Details
-
Easy to install, supplied with fixing screws and installation instructions
-
Ideal for spur circuits and hard wired power appliances
-
Angled colour coded terminals provide easy access for quick installation
-
Captive screws prevent screw loss
-
Sleek and slim premium metal with softly rounded edges
-
Moisture control gasket, prevents tarnishing from new plaster
-
No visible plastic around switch
-
Embossed with 'Fuse' on the fuse cover
-
Flush power indicator
Specification
Internal external |
Internal |
Neon |
Yes |
Prouct type |
Wiring Accessories |
Screwless |
No |
Switched |
Yes |
Unit colour |
Silver |
Unit size |
1 Gang |
