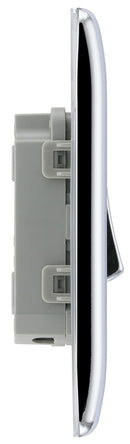

BG NPC12 Nexus Metal Polished Chrome Single Switch, 10A x 2 Way

BG NPC12 Nexus Metal Polished Chrome Single Switch, 10A x 2 Way


Sale price£3.17For 1
£3.80 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

BG NPC12 Nexus Metal Polished Chrome Single Switch, 10A x 2 Way

Product Description

This polished chrome finished 10A single light switch will operate one light switch in a room. The 2 way switching allows a second switch to be added to the circuit to operate the same light from another location (e.g. at the top and bottom of the stairs).
This switch has a sleek and slim profile, with softly rounded edges to add a touch of luxury to your decor.

Technical Details

Standard(s): BS EN 60669-1
Contact Gap:

3.0mm minimum
Rating: 10 Amp, 250V~(10AX – no derating for inductive or fluorescent loads)
Terminal Capacity - L & N: 4 x 1.0mm ² 4 x 1.5mm ² 2 x 2.5mm ² 1 x 4.0mm ²
RoHS Directive: No
WEEE Directive: No
Mounting Box Depth (Min): 16mm
Fixing Centres: 60.3mm
Size: 86mm x 86mm x 21.2mm

More Details

  • Easy to install, supplied with fixing screws and installation instructions

  • 2 way switching allows for a second switch position in a circuit

  • Captive, backed out terminal screws for fast installation and to prevent screw loss

  • Sleek and slim premium metal with softly rounded edges

  • Moisture control gasket, prevents tarnishing from new plaster

  • No visible plastic around switch

  • Minimum mounting box depth 16mm

Specification

Internal external

Internal

Neon

No

Prouct type

Wiring Accessories

Screwless

No

Switched

Yes

Unit colour

Black

Unit size

1 Gang
