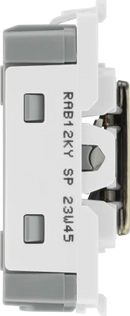

BG RAB12KY 2 way, single pole secret key
-
Simple secure 'locate & clip' fitting to frame
-
2 way switching allows for a second switch position in a circuit
-
Prevent unauthorised persons interacting with the switch
-
Supplied with key, spare keys available
-
Marked 'EMG LTG TEST'
-
Captive backed out terminal screws for fast installation
-
Module to be installed with Grid frame and plate
-
Single pole
-
General Colour : Antique Brass
-
Captive Terminal Screws : Yes
-
Backed-out Terminal Screws : Yes
-
Minimum Box Depth (mm) : 25
-
Terminal Capacity (mm²) : 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm²
-
Fixing Screws Supplied : N/A
-
Terminals with Colour Coding Print : No
-
Number of Switches : 1
-
Screw Caps : N/A
-
Switch Style Type : Key
-
Switch Type (Ways & Poles) : Two Way
-
Switch Location Position : Wall
-
IP Rating : IP20
-
Operating Voltage (V): 220-240
- Switch State : On/Off
- Height (mm) : 54
- Width (mm) : 24.7
- Depth (mm) : 22
Specification
Gtin |
5050765248846 |
