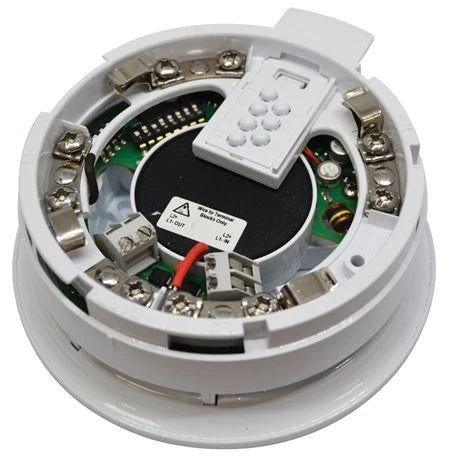

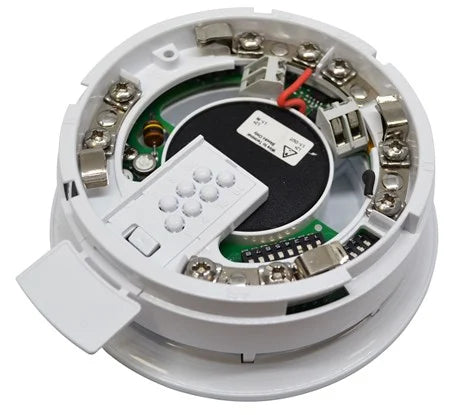

C-Tec 45681-277APO Apollo XP95 Sounder Base - Isolating
XP95 Sounder Base with integral isolated mounting base. Designed for indoor use.
- Two Apollo Tones
- EN54-3 Sounder
- Selectable Volumes 55–75dB (A), 75–91dB (A)
- XP95 (works on Discovery & CoreProtocol)
- XPert7 Addressing
- 4" Isolated Base
Technical Specification:
· Selectable volume(s): 55–75dB (A)
75–91dB (A)
· Tone(s): 2
· Colour: White
· Materials housing: Polycarbonate
· Product length: 38mm
· Product diameter: 115mm
· Weight: 140g
· Standards: EN 54-3
· Approvals: FG
CPR
· Polarity: L1 & L2 are polarity sensitive
· Protocol voltage (max): 9V
· Protocol voltage (min): 5V
· Protocol voltage: 5 to 9V peak to peak
· Power-up surge current: 1.2mA
· Maximum power-up time: <1 second
· Quiescent current: 200μA
· Quiescent current tested at: 24V dc
· Supply voltage (max): 28V dc
· Supply voltage (min): 17V dc
· Supply voltage (Vmin-Vmax): 17 to 28V dc
· Humidity: 0% to 95% (no condensation or icing)
· Humidity (max): 95% RH
· Humidity (min): 0% RH
· Humidity Note: no condensation or icing
· Operating temperature: -20 to 60°C
· Operating temperature (max): 60°C
· Operating temperature (min): -20°C
· IP rating Value: IP21D
· Operating temperature (min): -4°F
· Operating temperature (max): 140°F
· Operating temperature: -4 to 140°F
Downloads
Download product data sheets
