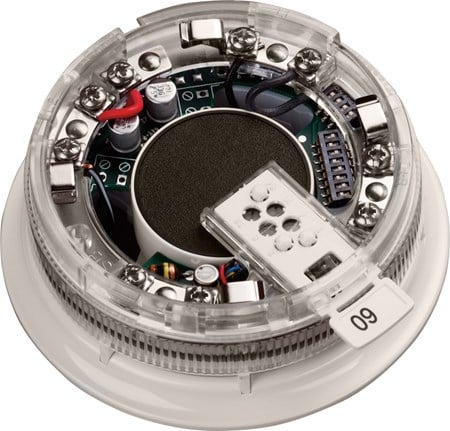

XP95 Sounder Visual Indicator Base with integral isolated mounting base. Designed for indoor use.

• Two-Tone EN54-3 Sounder
• Selectable Volumes 55–75dB (A), 75–91dB (A)
• Visual Indicator Beacon (Red-Flash)
• XP95 (works on Discovery & CoreProtocol)
• 4" Isolated Base EN54-17

Technical Specification:

·         Flash rate: 1Hz

·         Maximum sound output tone: 91dB (A)

·         Selectable volume(s): 55–75dB (A)

75–91dB (A)

·         Tone(s): 2

·         Colour: White

·         Finish: Semi-gloss

·         Materials housing: Polycarbonate

·         Product depth: 38mm

·         Product diameter: 115mm

·         Weight:160g

·         Terminal functions L2: +L2 Loop in & out positive, double terminal

·         Terminal functions L1 in: -L1 in Loop in & out, double terminal

·         Terminal functions +R: +R Remote indicator positive connection

·         Terminal functions -R: -R Remote indicator negative connection

·         Polarity: L1 & L2 are polarity sensitive

·         Battery powered: No

·         Protocol voltage: 5 to 9V peak to peak

·         Protocol voltage (max): 9V

·         Protocol voltage (min): 5V

·         Power-up surge current: 1.2mA

·         Maximum power-up time: <1 second

·         Quiescent current: 300μA

·         Quiescent current tested at: 24V dc

·         Supply voltage (min): 17V dc

·         Supply voltage (max): 28V dc

·         Supply voltage (Vmin-Vmax): 17 to 28V dc

·         Loop powered: Yes

·         Storage temperature (min): -20°C

·         Storage temperature (max): 60°C

·         Storage temperature: -20 to 60°C

·         Humidity (max): 95% RH

·         Humidity (min): 0% RH

·         Humidity: 0% to 95% (no condensation or icing)

·         Humidity Note: no condensation or icing

·         Operating temperature (max): 60°C

·         Operating temperature (min): -20°C

·         Operating temperature: -20 to 60°C

·         IP rating Value: IP21C

·         Operating temperature: -4 to 140°F

·         Operating temperature (max): 140°F

·         Operating temperature (min): -4°F
