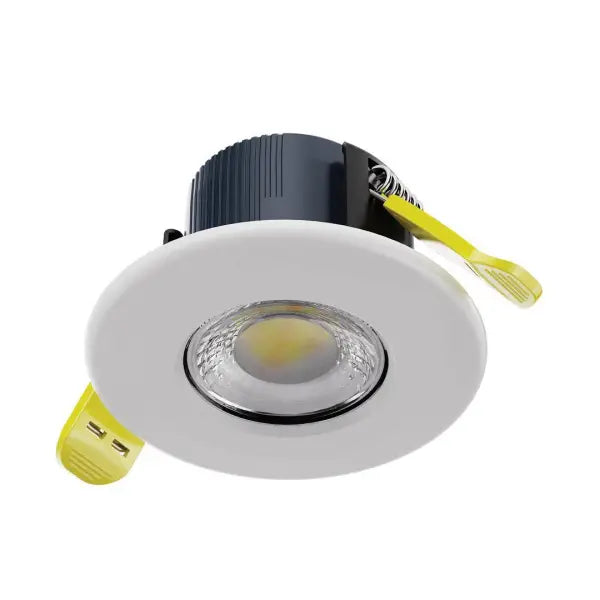

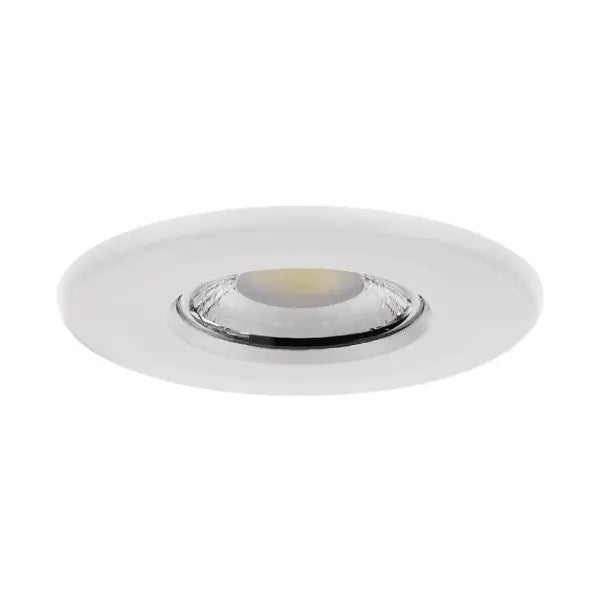

Collingwood DLT551500B H2 Lite CSP Dual Wattage (4-6W), Colour Changing (CCT), Waterproof (IP65) Downlight Suitable for Bathrooms
PRODUCT OVERVIEW
The H2 Lite CSP is a superior offering that is engineered to be the perfect fit-and-forget
solution. The colour temperature can be easily controlled by simply twisting the bezel off and flicking the switch on the front face of the product. The addition of the 2200K colour
temperature gives you the option of creating an excellent and warm atmosphere. Large piano key terminals allow loop-in/ loop-out wiring with ease.

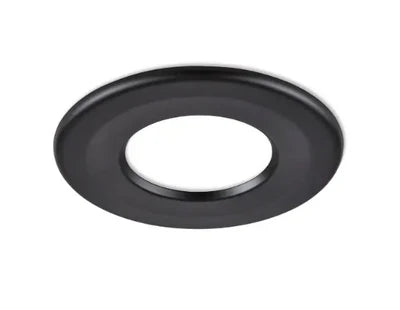

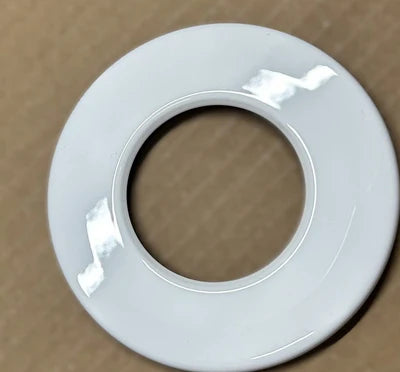

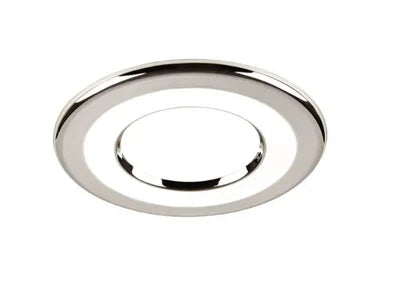

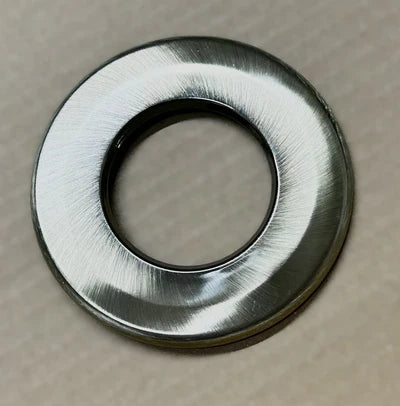

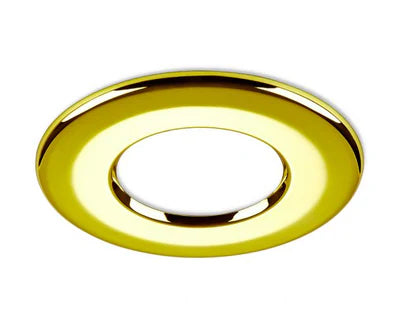

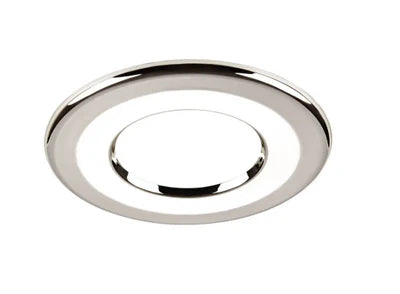

Multiple Bezel options available
Products Features:
- Colour switchable between 2200K, 2700K, 3000K and 4000K

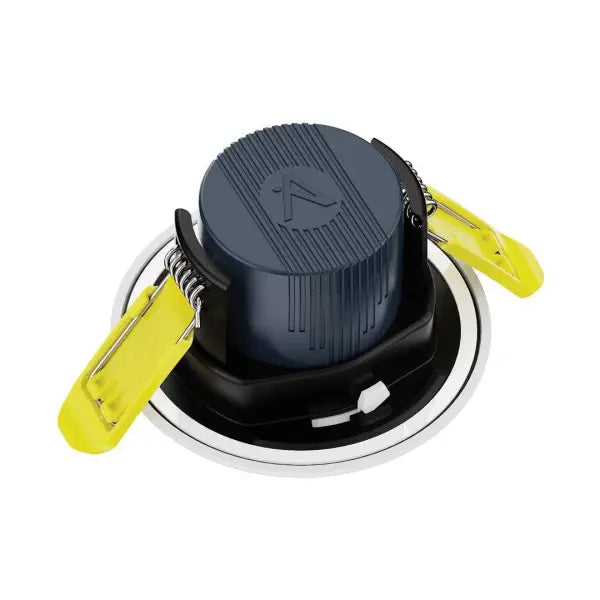

- Innovative smooth glide clip design for smooth installation
- Front switches allow you to choose options at installation
- New lever terminal block complete with testing ports for speed and ease of installation LENNEL

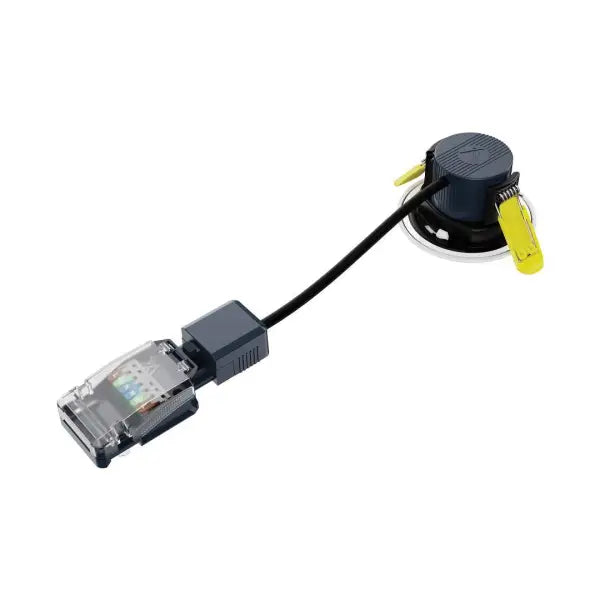

- 2-part connector provides first fix wiring whilst the luminaire is detached from the connector, loop in loop out, quick maintenance should disconnection/reconnection be required
- Collingwood have tested the H2 Lite CSP and confirmed they work together with the Click Flow CT100 series without compatibility issues.
- TRIAC Mains dimmable
- Select 2200K ‘Ember Light’ to minimise blue light and create a cosy fireplace environment
- Compatible with H2 Twist and lock bezels
- When using a converter plate, the IP rating is not affected; however, the product is no longer fire-rated.
- Wattage Switchable between 4W & 6W, delivering up to 145lmW
Please see datasheet below for more details
