• T2 Single phase surge protection

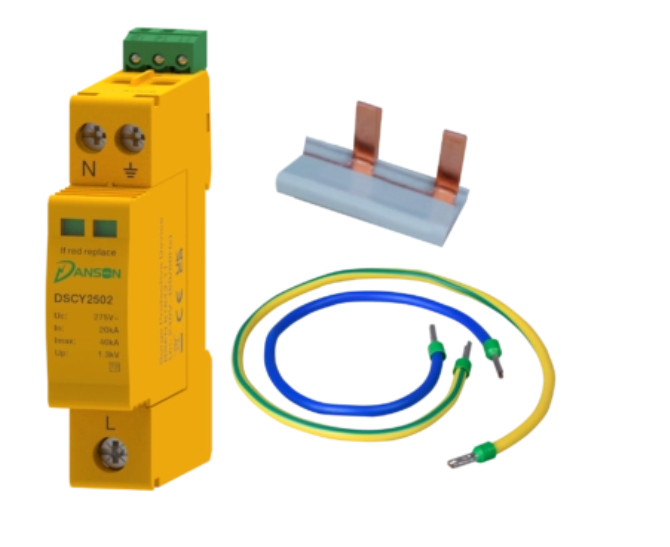

• Complete kit for easy installation

• Space saving design with 1 module width

Technical Details

• Norminal voltage Uo/Un [ V AC ]: 240


• Max. contimuous operating voltage UC:
  • L-N [ V AC ] 275
  • N-PE [ V AC ] 255


• Norminal discharge current In (8/20 μs) [ kA ]: 20


• Norminal discharge current Imax ( 8/20 μs) [ kA ]: 40


• Voltage protection level Up:
  • L-N [ kV ] ≤ 1.3
  • N-PE [ kV ] ≤ 1.5


• Response time tA:
  • L-N [ ns ] ≤ 25
  • N-PE [ ns ] ≤ 100


• Remote signalling contact: Yes

• Busbar: 2 pins

• Neutral cable:
  • Length [ mm ] 310
  • Cross-section [ mm2 ]: 6
  • Colour: Blue

• Earthing cable:
  • Length [ mm ]: 480
  • Cross-section [ mm2 ]: 6
  • Colour: Yellow-green
