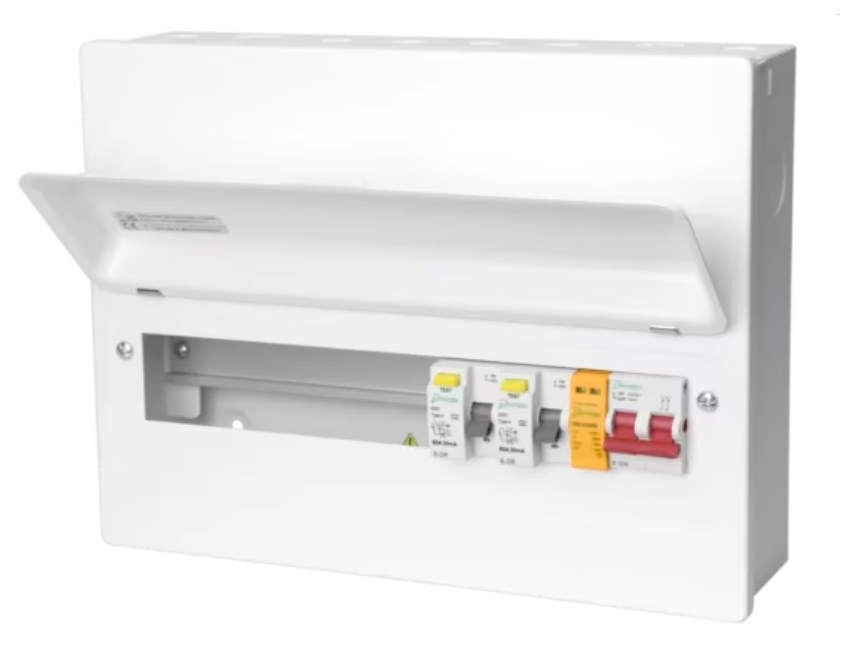

Danson E-MH16433-SPD1 (E-MH5580/SPD1) 16 Mod. Cons. Unit 100A Swi. Discnr. & 2 x 80A 30mA Type A RCDs + SPD + 8 MCBs
- 16 Module Consumer Unit 100A Switch disconnector
- SPD Type II 20-40kA, 1P+N 275V AC with Remote Indication Contact
- Accepts further 8 modules (1 Integral neutral bar)
- 8 usable ways
- Dimensions (HxWxD): 345 x 264 x 115.3mm
- Degree of protection to BS EN 60529 to IP2XC. Precautions must be taken to maintain the IP rating, e.g. use of cable glands and knockouts. BS EN 61439-3
- Cable entry points are located on top, bottom, side and rear surfaces
Product code updated to E-MH16433/SPD1/8MCB
Specification
Amps ii |
100 |
Depth |
115.3mm |
Height |
345 |
Number of incoming ways |
16 |
Prouct type |
Consumer Units |
Width |
264 |
