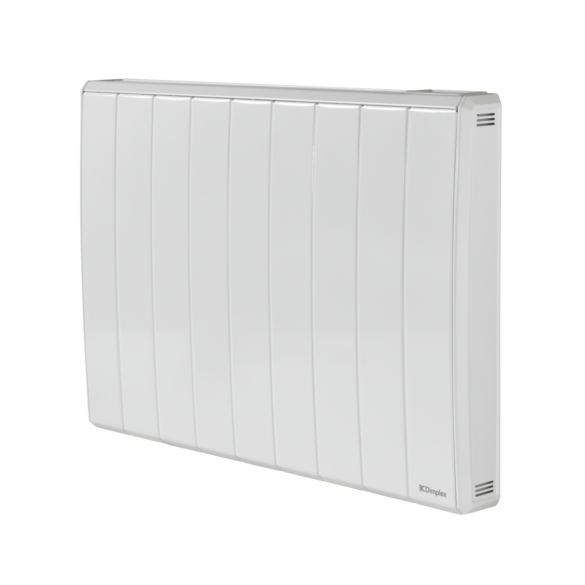

The attractive Q-Rad electric radiator with infrared technology is designed for the highest level of comfort and convenience, delivering natural heat efficiently to homes and businesses in an instant.

Designed and developed by our in-house team of experts the Q-Rad incorporates the most advanced intelligent technologies to give users maximum control over their heating. Its dual element heating technology combines an improved convective element with a far infrared element that delivers radiant heat. This gives the user an experience of heat that feels completely natural, on demand.

The slim design of the Q-Rad matches the Quantum range of high heat retention storage heaters by Dimplex. The perfect product partnership for refurbishment or social housing specification, it delivers a cohesive and stylish look with the benefits of improved energy performance. Flexible installation options and a low weight of just 11kg for the largest model – around a third of the weight of equivalent ceramic and oil-filled radiators – make the fitting of Q-Rad faster and more efficient.

Dubbed ‘the electric radiator with a brain’, Q-Rad has a host of intelligent software functions accessed via an intuitive backlit LCD display and control. Three customisable heating timers, each with four time and temperature settings for each day of the week, provide additional control and flexibility. The Boost function provides instant heat outside of timed heating periods whenever it is needed – day or night.

The improved Away mode maintains a low temperature when a property is empty to help prevent mould or damp and returns to the pre-set heating schedule at the set return date and/or time. Adaptive Start intelligently works out when to start heating to reach the desired target temperature at the required time, whilst Open Window Detection means Q-Rad continually adapts to its environment, minimising wasted energy.

Intelligent, responsive heating with precision control.

• Dual element technology delivering a perfect blend of convective and radiant heat
• Remote control and energy monitoring via smartphone using Dimplex Control app* (*requires Dimplex Hub sold separately)
• Customisable heating schedules for accurate temperature control and increased efficiency
• Sleek design to complement the range of Quantum HHR storage heaters

• App controlled: Yes, requires Dimplex Control Hub and Dimplex Control app

• Cable length (m): 1.3

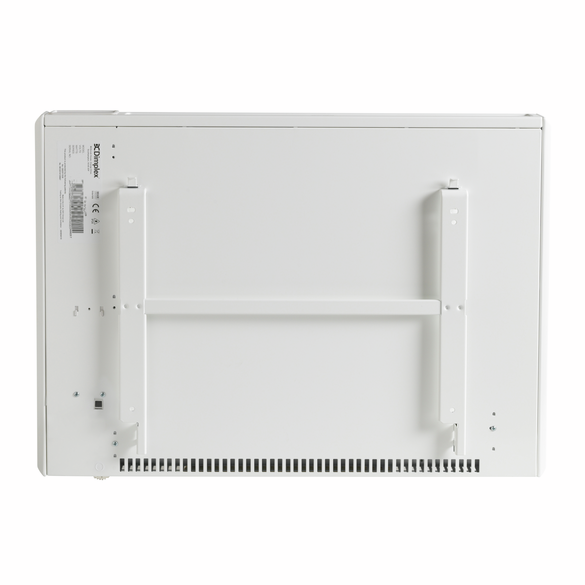

• Installation: 1 H-frame wall bracket for easy fixing

• Wattage: 1.5

• Location of Heat Output: Upward facing grille at the top. Radiant heat emits from the front panel.

• IP Rating: IP24

• Heat source: Electric

• Controls: Digitally controlled, electronic thermostat accurate to (±0.2°C). Setpoint range (7-30°C). 7 Day programmable User Timer, Out All Day, Home All Day. Continuous heat modes: Eco, Manual, Frost Protect. Additional modes: Away, Boost, Setback

• Cable Exit Point: Bottom Right

• Electric Supply: 1.3m fitted, 3 core for fused spur installation, 1/N/PE ~230-240 V, 50Hz Class I, with earth wire

• Safety Cut Out: Thermal cut-out. Auto reset type + Overheat detection

• Depth (mm): 105

• Height (mm): 546

• Width (mm): 756

• Batteries included: Yes

• Connection: 1.3m fitted, 3 core for fused spur installation, 1/N/PE ~230-240 V, 50Hz Class I, with earth wire

• Construction: Durable epoxy-polyester powder coated steel casing, with louvered upward facing grille. Advanced controls with cap-sense technology for total flexibility of heating.

• Cable length (m): 1.3

• Thermostat: Yes

• Location of Heat Output: Upward facing grille at the top. Radiant heat emits from the front panel.

• Timer: Integral 7-day time and temperature adjustment

• Element Type: Convection - Tubular element with aluminium coated fins for improved convective performance.Radiant - Cable on foil element. Silicone insulated heating cable on an aluminium sheet.

• Frost Protection: Yes

• Safety Cut Out: Thermal cut-out. Auto reset type + Overheat detection

• Variable Thermostat: Yes
