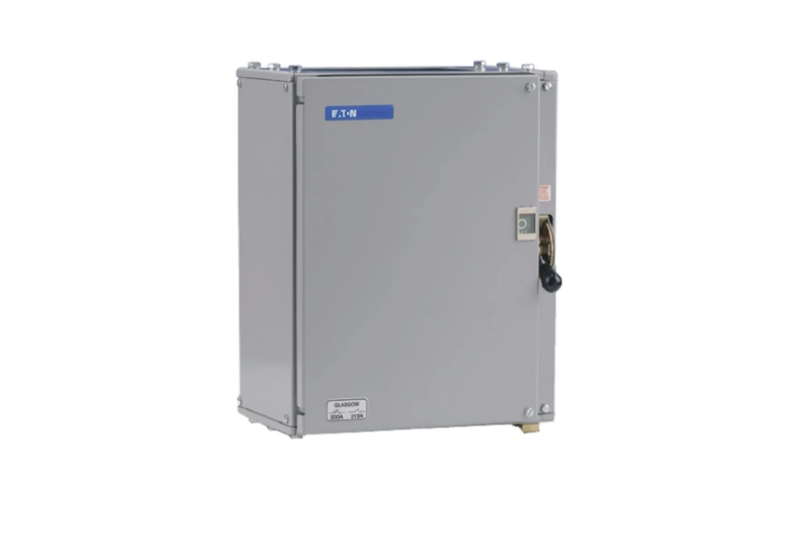

Product Description



• Units are fitted with HRC Fuselinks of maximum rating but will accept fuselinks of a lower rating



• Neutral makes first and breaks last



• A Glasgow Fuse Switch-Disconnector can be fitted with copper links to change it into a Switch-disconnector





Product Details



• Nominal Unit: 630A



• Nominal Unit Rating, Ie AC21: 1000A



• Poles: Three poles + Neutral



• Standards: BS EN 60947-3



• Copper Switch Links Fitted: 630MLK



• Motor Ratings (kW): 225



• AC23A Ue 415V (HP): 300
