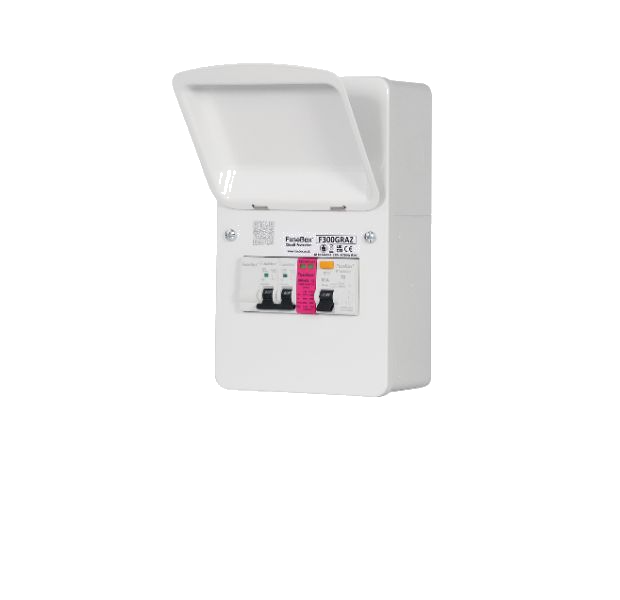

Fusebox F300GRAZ 63A 30mA RCD + 6A & 16A MCBs TYPE A + SPD T2
Product Details
| DESCRIPTION | 63A 30mA RCD + 6A & 16A MCBs TYPE A + SPD T2 |
| DIMENSIONS HxWxD (mm) | 263 x 162 x 116 |
| VOLTAGE | 230V/50Hz |
| MAXIMUM LOAD | 63A |
| TERMINAL CAPACITY | MS 35mm ², RCD 35mm ², MCB 16mm ², RCBO 16mm ² |
| IP RATING | 2XC |
| STANDARD | BS EN 61439-3 |
| KNOCKOUTS | 25mm+32mm CONDUIT KNOCKOUTS TOP AND BOTTOM |
| MATERIAL | STEEL |
| FINISH | SMOOTH WHITE EPOXY POWDER FINISH TO RAL9003 |
Specification
Gtin |
5060523520756 |
