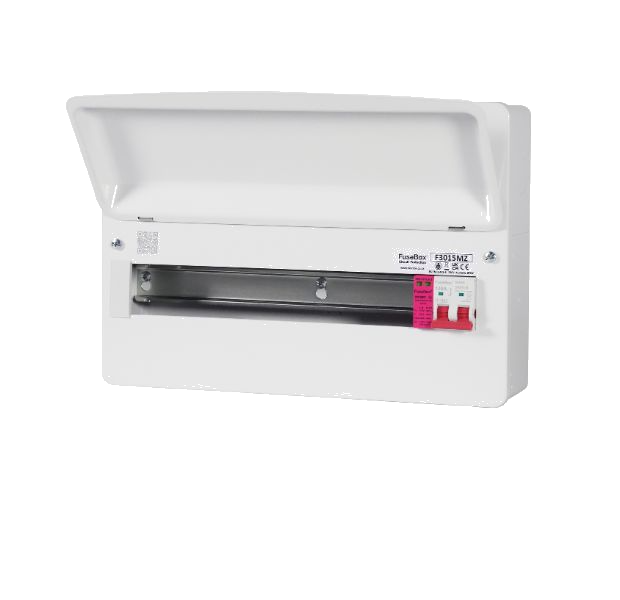

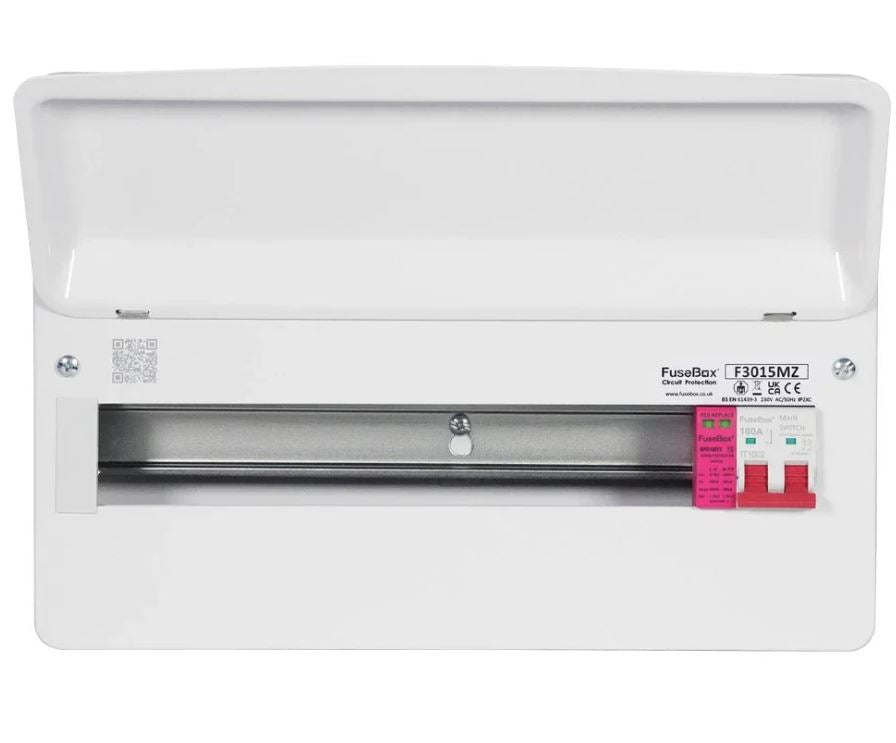

Fusebox F3015MZ 15-way Consumer Unit with 100A Isolator + T2 SPD (Replacement of F2014MX)

Fusebox F3015MZ 15-way Consumer Unit with 100A Isolator + T2 SPD (Replacement of F2014MX)
Fusebox F3015MZ 15-way Consumer Unit with 100A Isolator + T2 SPD (Replacement of F2014MX)
Roll over image to zoom in Click on image to zoom
Fusebox F3015MZ 15-way Consumer Unit with 100A Isolator + T2 SPD (Replacement of F2014MX)
Fusebox F3015MZ 15-way Consumer Unit with 100A Isolator + T2 SPD (Replacement of F2014MX)

Fusebox F3015MZ 15-way Consumer Unit with 100A Isolator + T2 SPD (Replacement of F2014MX)

Fusebox
Add RCBO's (Type A, B Curve): No RCBO
£61.98For 1
£74.38 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

NEW F3 Series!!
Fusebox F3015MZ 15-way Consumer Unit with 100A Isolator + T2 SPD (Replacement of F2014MX)

SPECIFY RCBO SIZE IN THE BOX ABOVE

Product Details

STANDARD EN 61439-3
RATED VOLTAGE (Un/AC) 230V
FREQUENCY (Hz) 50/60
PROTECTION DEGREE (IP) 2XC
MAXIMUM TERMINAL BAR CAPACITY 16mm ²
TERMINAL BAR TIGHTENING TORQUE (Nm) 2
DEVICE MOUNTING 35mm DIN RAIL
MATERIAL 1mm ELECTRO GALVANISED STEEL (ZINC)
FINISH RAL 9001 POWDER COATED SMOOTH FINISH
KNOCKOUTS SELECTION 20mm - 40mm
ACCESSORY PACK CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP
WEIGHT (1PC) 4kg
DIMENSIONS (HxWxD)mm 259x378x113
DOUBLE BANK N
TAIL CLAMP INCLUDED (ACCF) Y



Specification

Gtin

 5060523524006
