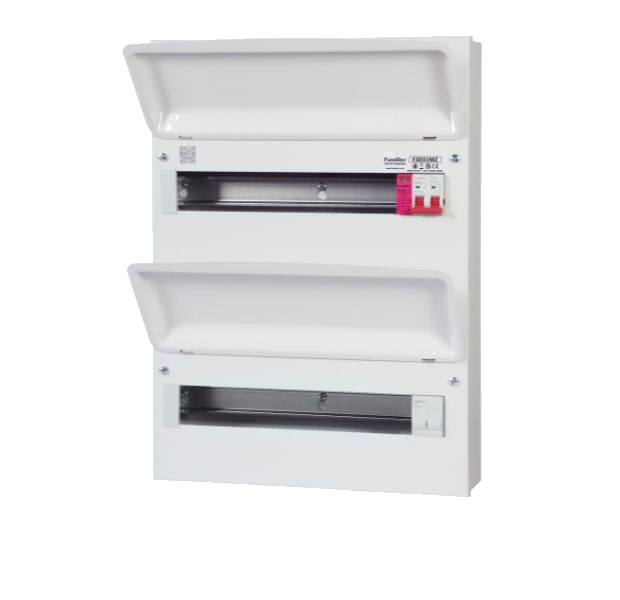

Fusebox F3031MZ 31 Way (15/16) Consumer Unit with 100A Isolator + T2 SPD Double Bank (Replacement of F2029MX)

Fusebox F3031MZ 31 Way (15/16) Consumer Unit with 100A Isolator + T2 SPD Double Bank (Replacement of F2029MX)
Roll over image to zoom in Click on image to zoom
Fusebox F3031MZ 31 Way (15/16) Consumer Unit with 100A Isolator + T2 SPD Double Bank (Replacement of F2029MX)

Fusebox F3031MZ 31 Way (15/16) Consumer Unit with 100A Isolator + T2 SPD Double Bank (Replacement of F2029MX)

Fusebox
Add RCBO's (B-Type): No RCBO
£147.50For 1
£177.00 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

NEW F3 Series!!!
Fusebox F3031MZ 31 Way (15/16) Consumer Unit with 100A Isolator + T2 SPD Double Bank (Replacement of F2029MX)

SPECIFY RCBO SIZE IN THE BOX ABOVE



Product Details



STANDARD EN 61439-3
RATED VOLTAGE (Un/AC) 230V
FREQUENCY (Hz) 50/60
PROTECTION DEGREE (IP) 2XC
MAXIMUM TERMINAL BAR CAPACITY 16mm ²
TERMINAL BAR TIGHTENING TORQUE (Nm) 2
DEVICE MOUNTING 35mm DIN RAIL
MATERIAL 1mm ELECTRO GALVANISED STEEL (ZINC)
FINISH RAL 9001 POWDER COATED SMOOTH FINISH
KNOCKOUTS SELECTION 20mm - 40mm
ACCESSORY PACK CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP
WEIGHT (1PC) 8.5kg
DIMENSIONS (HxWxD)mm 512x378x113
DOUBLE BANK Y
TAIL CLAMP INCLUDED (ACCF) Y



Specification

Gtin

 5060523524082
