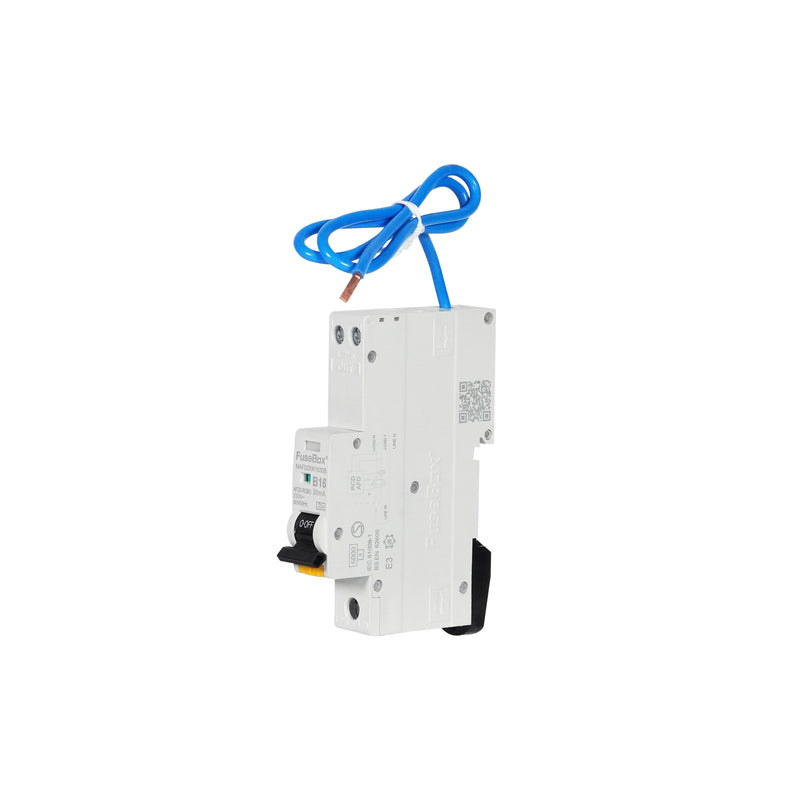

Fusebox MAFDD062030B AFDD&RCBO, Mini 6ka 20A 30mA 1P+N B Curve Type A

Fusebox MAFDD062030B AFDD&RCBO, Mini 6ka 20A 30mA 1P+N B Curve Type A
Roll over image to zoom in Click on image to zoom
Fusebox MAFDD062030B AFDD&RCBO, Mini 6ka 20A 30mA 1P+N B Curve Type A

Fusebox MAFDD062030B AFDD&RCBO, Mini 6ka 20A 30mA 1P+N B Curve Type A

Fusebox
£74.95For 1
£89.94 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

New AFDD!!
Fusebox MAFDD062030B AFDD&RCBO, Mini 6ka 20A 30mA 1P+N B Curve Type A

Image is Generic!!

Product Details:

  • FuseBox combined AFDD/ RCBO (1P+N) SWITCHED
  • Fully compliant and 3rd party tested to BS EN 62606 / IEC 61009-1
  • LED Fault indication
  • Fits all FuseBox consumer units
  • Replaces any FuseBox RCBO where additional ARC protection may be required
  • Used for the protection against ARC FAULTS (SERIES AND PARALLEL), overload, short circuit and earth leakage
  • Type A for AC and pulsating DC sensitivity
  • Short circuit capacity of 6kA with a maximum rating of 40A

Technical Details:

  • Number of Poles: 1P+N (Switched)
  • Rated Voltage(Un/AC) : 230V
  • Frequency(Hz) : 50/60
  • Rated Breaking Capacity : 6000A (6kA)
  • Rated Current : 20A
  • Tripping Characteristics : B Curve : 3-5In
  • RESIDUAL CURRENT CHARACTERISTICS :  TYPE A (AC AND PULSATING DC UP TO 6mA)
  • RATED RESIDUAL OPERATING CURRENT(I△n): 0.03
  • MECHANICAL ENDURANCE : 10,000
  • PROTECTION DEGREE (IP) : 20
  • MOUNTING : 35mm Din rail mounting
