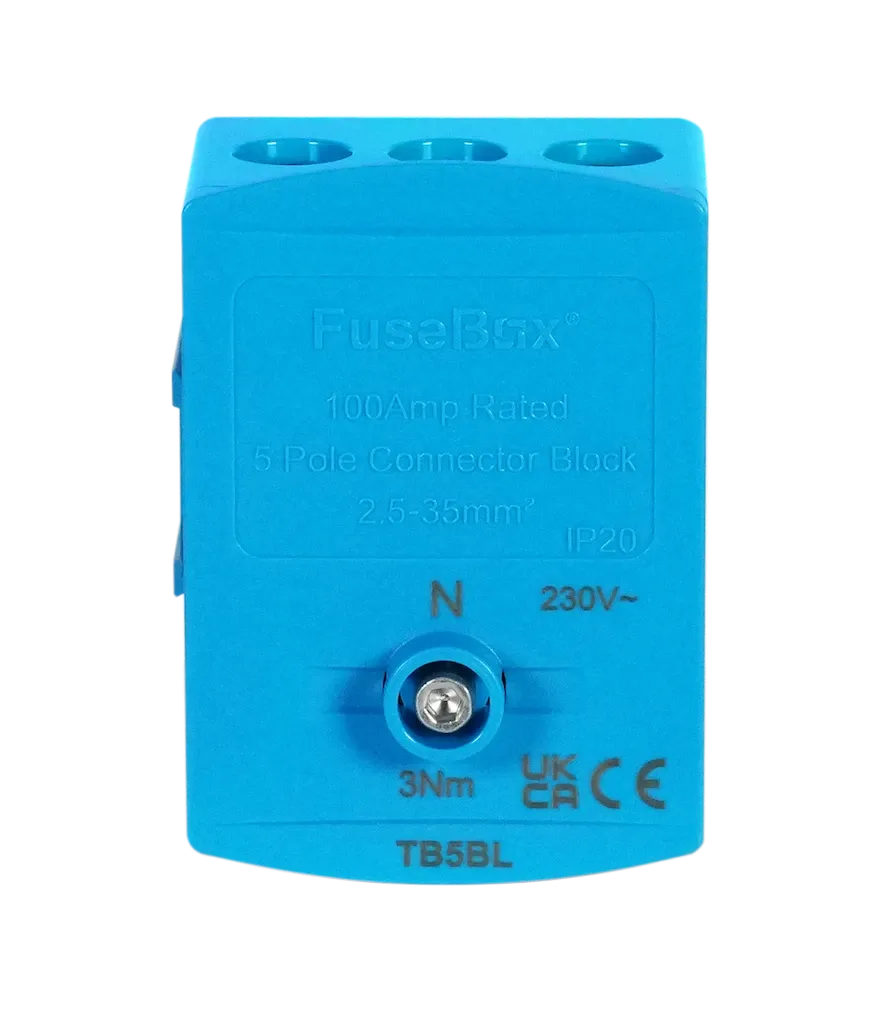

PRODUCT DETAILS

• 100A
• 5 Pole
• Colour coded for phase identification; Blue for neutral application
• Dimensions (mm) H x W x D:  71x50x43
• 35mm cable capacity
• Dovetail joint on side to link to other connector blocks in the range
• IK07 impact resistance
• BS EN 60947-7-1
• Hex terminal screws (4mm)
• Hex front cover screw (3mm)
• 230V
• Wire sealable front cover screw
• Surface mounted
• Operating temperature -25°C +55°C
• Material - PC, inserts PBT, Terminal block - Brass
