Technical Specification:

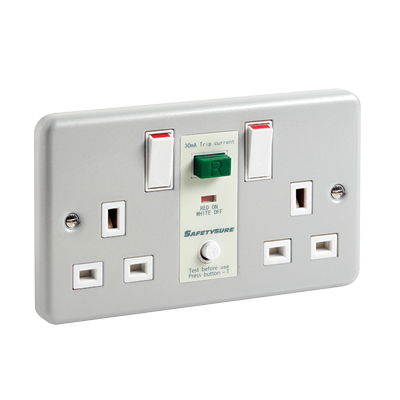

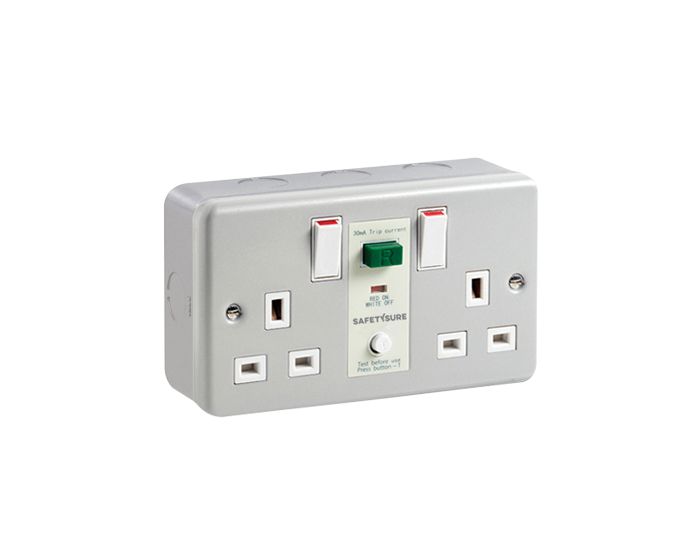

• Product Code : M22SM
• Feature 1 : Mechanical flag trip indicators
• Feature 2  : Mechanically latched Passive no need to reset after a power loss
• Colour : Metal Clad
• Current (I) : 13
• Degree of Protection : 20
• Finish body : Matt
• Fixings supplied with product :  Closing screws
• Frequency (Hz) max : 60
• Frequency (Hz) min : 50
• Ingress Protection (IP)  : IP20
• Installation method : Surface or flush
• Knock-out Dimensions : 20
• Latching : Passive
• Materials Main Body :  Steel
• Max Operating Current : 13A Resistive & Inductive Load
• Operating Temperature Range max C :  40
• Operating Temperature Range min C : -5
• Depth (mm) : 50
• Height (mm) : 86.5
• Width (mm) : 14
• Rated Conditional Short-Circuit Current : 1500
• Rated Short Circuit Breaking & Making Capacity : 250
• RCD Contact Break : Double pole
• RCD Type : A
• Typical Trip Speed : 30
• Voltage (VAC) MAX (V) : 240Voltage (VAC) Min (V) : 220

• Voltage (VAC) Rated (V) : 230
• Wattage (W) : 3000
