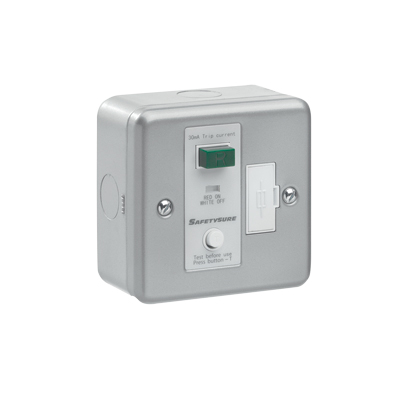

Greenbrook M92M RCD SafetySure Fused Spur Metal
- Product Code : M92M
- Feature 1 : Mechanical flag trip indicators
- Feature 2 : Mechanically latched Passive no need to reset after a power loss
- Colour : Metal
- Current (I) : 13
- Degree of Protection : 20
- Finish body : Matt
- Fixings supplied with product : Closing screws
- Frequency (Hz) max : 60
- Frequency (Hz) min : 50
- Ingress Protection (IP) : IP20
- Installation method : Surface or flush
- Latching : Passive
- Materials Main Body : Steel
- Max Operating Current :13
- Operating Temperature Range max C : 40
- Operating Temperature Range min C -5
- Depth (mm) : 50
- Height (mm) : 87
- Width (mm) : 87
- Rated Conditional Short-Circuit Current : 1500
- Rated Short Circuit Breaking & Making Capacity : 250
- RCD Contact Break : Double pole
- RCD Type : A
- Typical Trip Speed : 30
- Voltage (VAC) MAX (V) : 240
