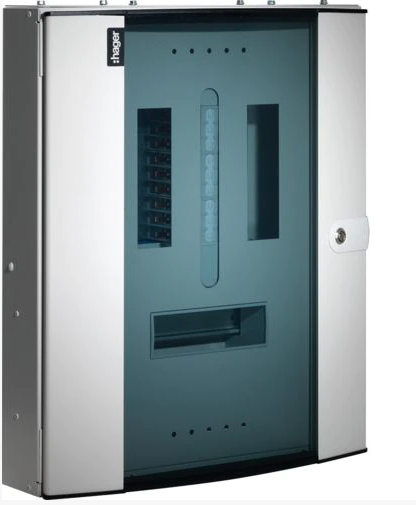

Product Details

• Standards Designed, manufactured and tested to BS EN 61439-3

• Busbar Current Rating: 125A

• Busbar Type Fully shrouded copper

• Busbar Rating 25kA Conditional

• Incoming:
  • 100A Switch
  • 125A Switch
  • 63A contactor AC3
  • 100A contactor AC3
  • Direct connection
  • RCCB incomers

• Outgoing Ways: 16

• Outgoing Protection:

  • Type B MCB (6A to 63A, 1P & 3P)
  • Type C, D MCB, (0.5A to 63A, 1P & 3P)
  • 1Mod and 2Mod RCBO

• Voltage Rating in AC: 230 / 415V

• IP Protection: IP3X to BS EN 60529

• Enclosure Body Type: Steel

• Cable Entry: Obround protected cable entry points

• Terminal Connection Capacity:
• Incoming Line Terminal: 50mm²

• Incoming Earth Terminal: M8 stud

• Incoming Neutral Terminal: 50mm² cage or M6 stud

• Outgoing Earth Terminals: 16mm²

• Outgoing Neutral Terminals: 16mm²

• Enclosure Earth Stud: M8

• Mounting:

  • 4 x key hole fxing holes plus central top key hole for one fxing hanging / levelling
  • Surface Wall Mount

• Gland Plate: Top and bottom removable

• Integrated Locking System: Coin lock as standard, key lock as accessory

• Protection index IP: IP30
  Protection class: Protection class III
