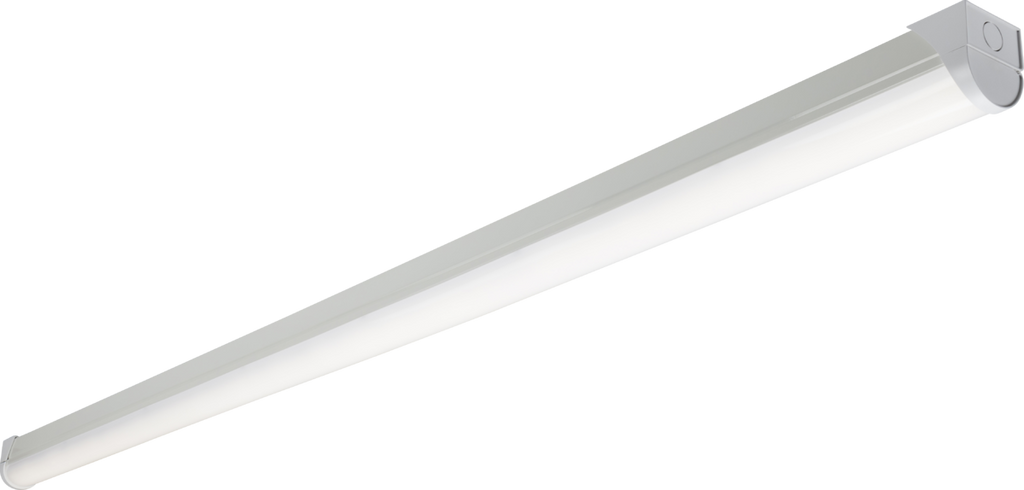

Knightsbridge MLA BATM6H 230V 6ft 48W Modular LED High Power Batten - 4000K
Modular design: Whether the project needs a standard batten, an emergency option or a microwave sensor, the range covers it all with the help of plug-in modules. Choose from various lengths and wattages to suit specific project requirements.
High Efficiency: The battens deliver up to 140 lm/W, providing bright illumination while minimizing energy consumption. This superior performance is achieved by utilizing the latest LED chip and driver technology.
Quick installation: The hinged tray mechanism ensures easy installation. Conduit entries, standard 600mm fixing points, and BESA compatibility ensure that the range will retrofit any installation and allow flexibility for new projects.
- Optional modular microwave sensor, MODMWS
- Optional modular emergency conversion kit, MODEMKIT
- High efficiency
- Rear and end conduit fixings
- Standard 600mm centres and BESA box compatible
- Hinged gear tray
- Push-fit loop in-loop out terminal block
Product Details:
| MLA PART CODE | BATM6H |
|---|---|
| DESCRIPTION | 230V 6ft 48W Modular LED High Power Batten - 4000K |
| NET WEIGHT (KG) | 1.8 |
| FINISH | White |
| DIFFUSER | Opal |
| DIMENSIONS (MM) | Length - 1790 Width - 61 Projection - 70 |
| CONSTRUCTION | Construction - Pressed steel Construction 2 - & polycarbonate |
| CLASS | I |
| IP RATING | IP20 |
| IK RATING | IK08 |
| WATTAGE (W) | 48 |
| LAMP TECHNOLOGY | LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 6700 |
| LUMENS LIGHT SOURCE ONLY (LM) | 7400 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 153 |
| CIRCUIT WATTAGE (W) | 48 |
| CCT | 4000K |
| LIGHT COLOUR | Cool White |
| CRI | >80 |
| SDCM | <6 |
| RUNNING CURRENT (A) | 0.216 |
| DISPLACEMENT FACTOR | >0.7 |
| SVM | 0 |
| PST-LM | 0.01 |
| BEAM ANGLE (DEGREES) | 120 |
| L70B50 LIFESPAN (HRS) | 100000 |
| LED COMPATIBLE | Yes |
| DIMMABLE | No |
| EMERGENCY CONVERSION KIT | MODEMKIT |
| OPERATING TEMPERATURE | -20~45°C |
| INPUT VOLTAGE | 230V 50Hz |
| CABLE GLAND INCLUDED | No |
| WARRANTY | 5year(s) |
- 4000K, 6,600lm
Downloads
Download product data sheets
