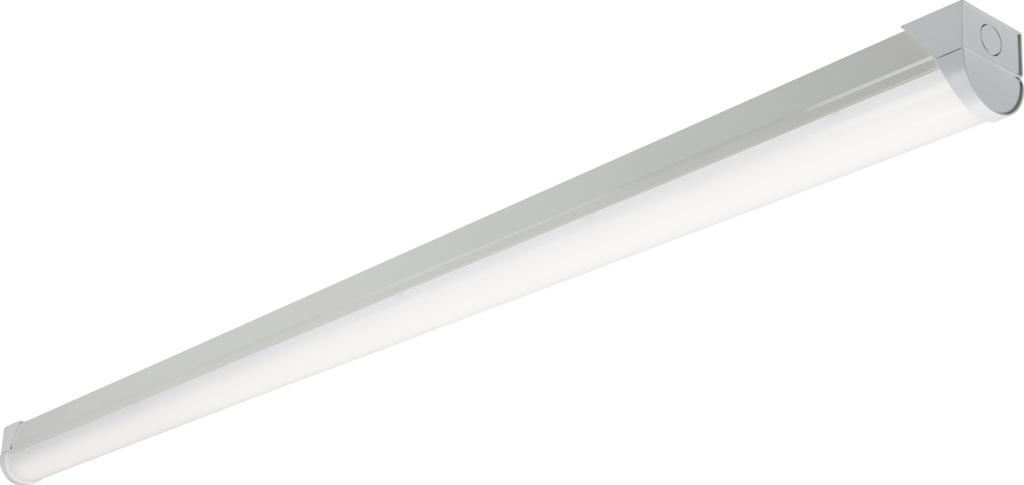

Knightsbridge MLA BATM5H 230V 5ft 43W Modular LED High Power Batten - 4000K
Modular design: Whether the project needs a standard batten, an emergency option or a microwave sensor, the range covers it all with the help of plug-in modules. Choose from various lengths and wattage's to suit specific project requirements.
High Efficiency: The battens deliver up to 140 lm/W, providing bright illumination while minimizing energy consumption. This superior performance is achieved by utilizing the latest LED chip and driver technology.
Quick installation: The hinged tray mechanism ensures easy installation. Conduit entries, standard 600mm fixing points, and BESA compatibility ensure that the range will retrofit any installation and allow flexibility for new projects.
- Optional modular microwave sensor, MODMWS
- Optional modular emergency conversion kit, MODEMKIT
- High efficiency
- Rear and end conduit fixings
- Standard 600mm centres and BESA box compatible
- Hinged gear tray
- Push-fit loop in-loop out terminal block
- 4000K, 5,900lm
- Length : 1525
- Width : 61
- Projection : 70
- Construction : Construction - Pressed steel
Construction 2 - & polycarbonate - Finish : White
- Class : I
- IP Rating : IP20
- IK RATING :
- Diffuser : Opal
- Lamp Base : IK08
- Lamp Included : Yes
- Dimmable : No
- Wattage : 43
- Beam Angle : 135
- CCT : 4000
- Light Colour : Cool White
- Lumens : 6150
- Lumens (Light Source only) : 6700
- Warranty : 5year(s)
