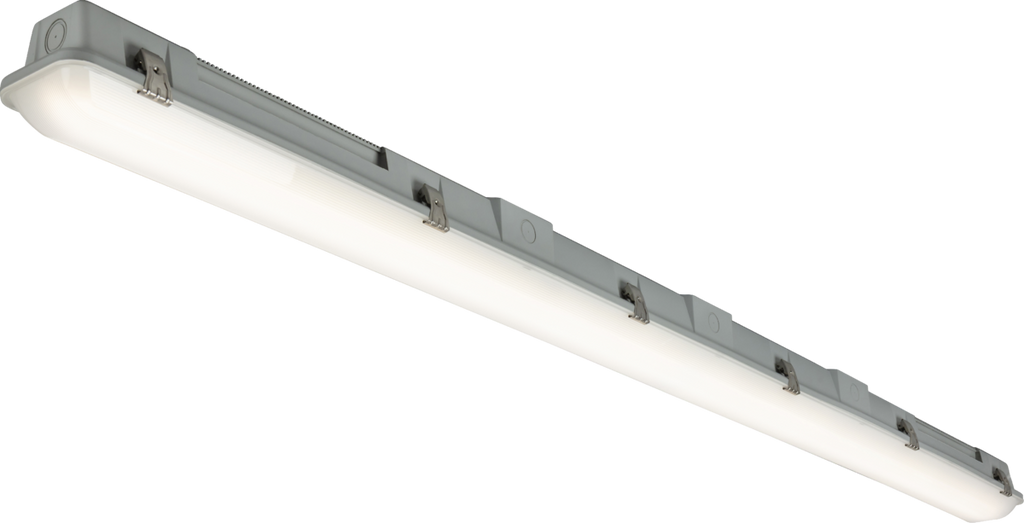

Knightsbridge MLA HEX2 HELIX ONE 2FT 230V IP66 IK10 22W Modular Non-Corrosive Fitting - 4000K
HELIX Modular Non-Corrosive, modular design with Plug and Play Emergency and Sensor modules;
- Optional modular microwave sensor, MODMWS
- Optional modular dual mode emergency conversion kit, MODEMKIT2
Built for performance, designed for flexibility. Delivers high performance lighting for commercial and industrial applications, both indoor and out. Versatile fitting, with enhanced features;
- Rear, side and end conduit entries
- New body design compatible with BESA box mounting
- Pre-drilled rear and end conduit entries with unique replaceable end caps
- Large bracket fixing point to ease mounting process
- Detachable terminal blocks to ease cable entry points
- Plug and Play Emergency and Sensor modules
Constructed from robust, anti-corrosive polycarbonate material and stainless steel clips as standard, these fittings offer maximum performance with minimal maintenance.
- IP66 and IK10 rating
- High efficiency
- Push-fit loop in-loop out terminal block
- Supplied with surface mount plates as standard. Suspension kit available (sold separately)
| NET WEIGHT (KG) | 1.1 |
|---|---|
| FINISH | Grey |
| DIFFUSER | Opal |
| DIMENSIONS (MM) | Length - 665 Height - 81 Width - 126 Projection - 81 |
| CONSTRUCTION | Construction - Polycarbonate |
| CLASS | I |
| IP RATING | IP66 |
| IK RATING | IK10 |
| WATTAGE (W) | 22 |
| LAMP TECHNOLOGY | SMD LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 3045 |
| LUMENS LIGHT SOURCE ONLY (LM) | 3695 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 162 |
| CIRCUIT WATTAGE (W) | 22.7 |
| CCT | 4000K |
| LIGHT COLOUR | Cool White |
| CRI | >80 |
| SDCM | <6 |
| RUNNING CURRENT (A) | 0.107 |
| SVM | 0.076 |
| PST-LM | 0.03 |
| BEAM ANGLE (DEGREES) | 110 |
| L70B50 LIFESPAN (HRS) | 70,000 |
| LED COMPATIBLE | Yes |
| DIMMABLE | No |
| EMERGENCY CONVERSION KIT | MODEMKIT2 (Sold Separately) |
| OPERATING TEMPERATURE | -20~45°C |
| INPUT VOLTAGE | 230V 50Hz |
| CABLE ENTRY (MM) | 20 |
| CABLE GLAND INCLUDED | Compression gland |
| WARRANTY | 5year(s) |
