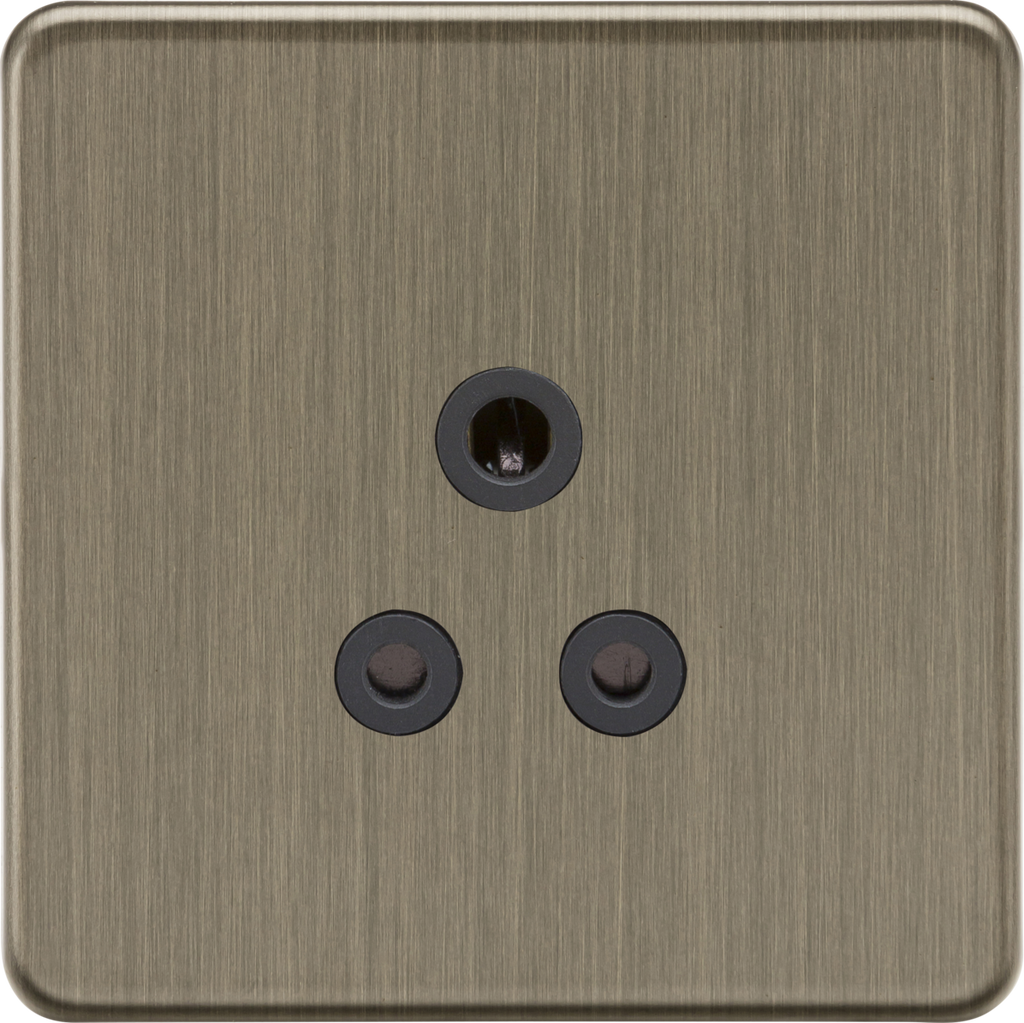

Knightsbridge MLA SF5AAB 5A Unswitched Socket - Antique Brass
Ideal for use in custom lighting solutions, flawless Screwless low profile metal design.
- 5A round pin socket
- Unswitched
- Screwless low profile design with built in gasket
- Certified to BS 546
- Minimum mounting box depth 25mm
Specification:
| MLA PART CODE | SF5AAB |
|---|---|
| DESCRIPTION | 5A Unswitched Socket - Antique Brass |
| NET WEIGHT (KG) | 0.13 |
| FINISH | Antique Brass |
| INSERT COLOUR | Black |
| DIMENSIONS (MM) | Height - 87.5 Width - 87.5 Depth - 23.6 Projection - 4.3 Recessed Depth - 19.3 |
| MINIMUM MOUNTING BOX DEPTH | 25mm |
| CONSTRUCTION | Construction - 201 Stainless steel |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| EARTH TERMINAL | Yes |
| LOAD/MAX. LOAD | 5A |
| TERMINAL CAPACITY | 2 x 1.0mm² or 2 x 1.5mm² |
| WARRANTY | 25year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS 546 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
