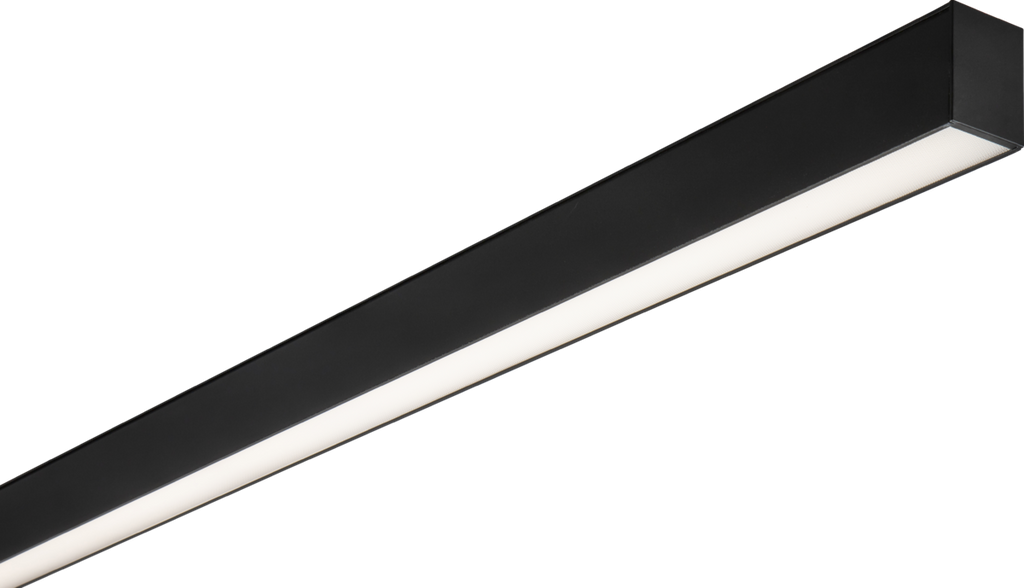

Knightsbridge MLA VVA5BK VIIVA 230V IP20 5ft 4x Wattage and 3 x CCT Adjustable Linear Fitting – Black
Viiva Linear luminaires, the ideal lighting solution for modern commercial and office spaces. Designed with efficiency and convenience in mind, the range offers contemporary aesthetics with practical features. Viiva Linears, available in 4ft and 5ft, in matt white and matt black finish. The luminaire features 4 x wattages and 3 x CCT as standard; low setting provides UGR19 rating, delivering a glare-free optimal output, and high setting will provide a brighter illumination. Suspension kit and 3 hour emergency kit also available (sold seperately).
- Selectable 20W, 28W, 38W and 42W outputs (to regulate maximum light output) for varying illumination requirements
- UGR19 rating on lowest wattage setting
- Selectable 3000K, 4000K, 5700K CCTs
- 5ft fitting (1500mm)
- Non-dimmable
- Surface mount brackets included
- Suspension kit available, sold seperately (Product code: 5FTT5KIT)
- 3 hour Emergency kit available (sold seperately)
| MLA PART CODE | VVA5BK |
|---|---|
| DESCRIPTION | VIIVA 230V IP20 5ft 4x Wattage and 3 x CCT Adjustable Linear Fitting – Black |
| NET WEIGHT (KG) | 0.9 |
| FINISH | Matt Black |
| DIFFUSER | Opal |
| DIMENSIONS (MM) | Length - 1500 Height - 63 Width - 48 |
| CONSTRUCTION | Construction - Aluminium Construction 2 - & polycarbonate |
| CLASS | I |
| IP RATING | IP20 |
| WATTAGE (W) | 20/28/38/42 |
| LAMP TECHNOLOGY | SMD LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 1670/1790/1800/2175/2355/2325/2980/3300/3225/3280/3645/3535 |
| LUMENS LIGHT SOURCE ONLY (LM) | 5580 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 134 |
| CIRCUIT WATTAGE (W) | 41.94 |
| CCT | 3000/4000/5700K |
| LIGHT COLOUR | CCT |
| CRI | >85 |
| SDCM | <6 |
| RUNNING CURRENT (A) | 0.189 |
| DISPLACEMENT FACTOR | >0.9 |
| SVM | 0.022 |
| PST-LM | 0.035 |
| BEAM ANGLE (DEGREES) | 90 |
| L70B50 LIFESPAN (HRS) | 50,000 |
| LED COMPATIBLE | Yes |
| DIMMABLE | No |
| OPERATING TEMPERATURE | -20 ~ 50°C |
| INPUT VOLTAGE | 230V 50Hz |
| WARRANTY | 5year(s) |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
