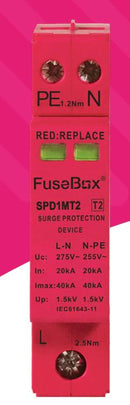

Single Module T2 SPD

Technical Specification:

Standard: EN 61643-11 (Type 2)

Flag Indication: Green: Good / Red: Replace

Technology:  MOV (METAL OXIDE VARISTOR) /GDT (SPARK GAP)

Voltage (Un):  230V~

System:  TN-C-S, TN-S, TT

Terminal Capacity:  L: 16mm2 N/PE: 10mm2

Recommended Torque:  L: 2.5Nm /PE 1.2Nm / N 1.2Nm

Degree of Protection:  IP20

Mounting:  35mm DIN RAIL

Maximum Operating Voltage (Uc):  L-PE 275V; N-PE 255V

Nominal Discharge Current (In 8/20μs):  20kA

Maximum Discharge Current (Imax 8/20μs):  40kA

Voltage Protection Level:  L-PE ≤1.5kV; N-PE ≤1.3kV

Response Time (tA):  ≤25ns

Maximum Back Up Fuse: 100A fuse gG

Short Circuit Withstand (IsccR): 25kA

Temporary Overvoltage (UT): 335V/5 sec - withstand
