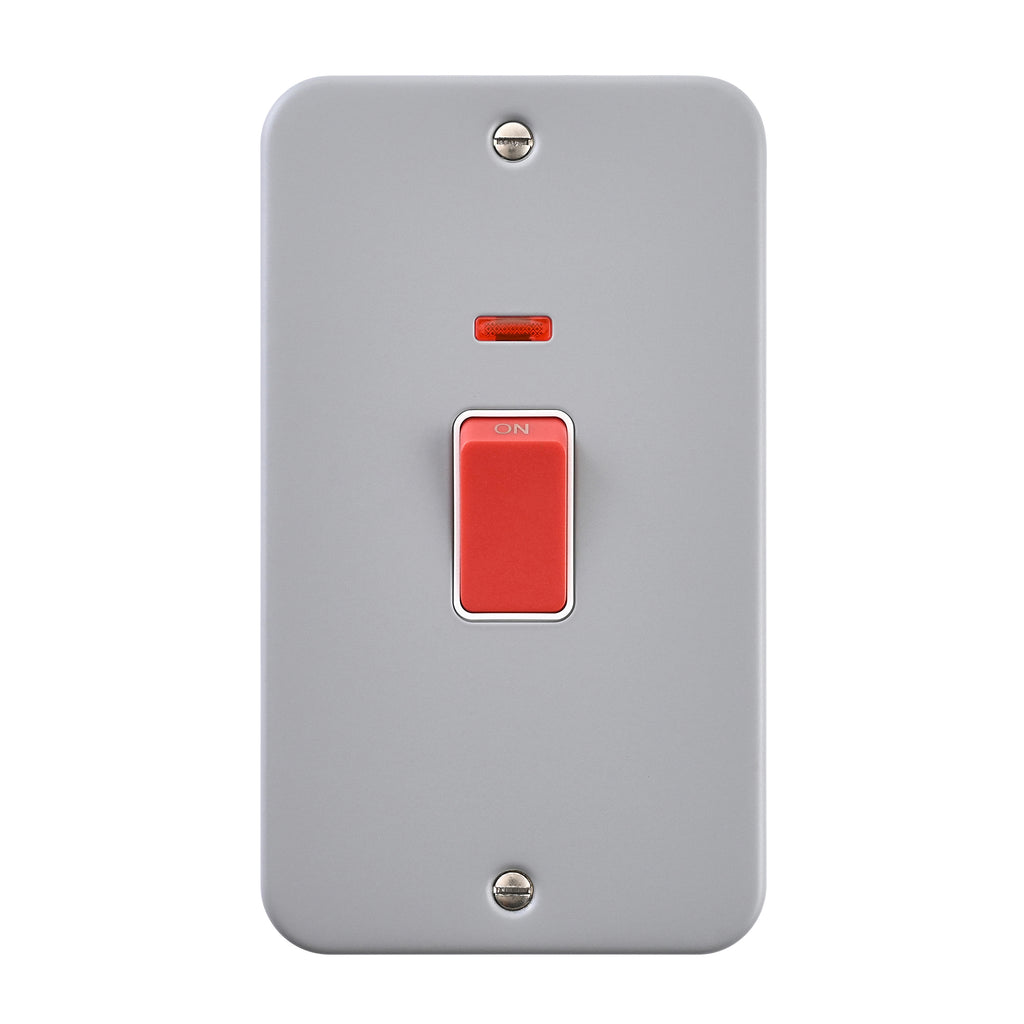

Saxby MC555 45A Large Plate DP Switch with Neon
- MC 45A 2G DP SW N
- Metal Clad 45A Large Plate DP Switch with Neon
- Our 45A rated switch boasts captive screws which provide for quick, easy and a hassle free installation Supplied with fixing screws Twin earth fitted as standard to allow a double earth facility for installations that require a high integrity protective connection Double pole switching for the peace of mind of a safer installation of your socket Flush neon power indicator on faceplate Multiple knockout entry points on surface box for 20mm conduit giving you complete versatility when installing Finished in a high quality powder coating to help protect against scratches We recommend using a standard metal surface box with a depth of 40mm - MC902 Certified to IEC/BS EN60669
- Finish : Silver effect paint
- Product Category : Metal Clad
- Prod Dimensions : 42.5mm depth x 86mm height x 146mm width
- Product Material : METAL
- IP Rating : IP20
- Class : 1
- Minimum Mounting Box Depth : N/A
- Switch Type : DOUBLE POLE
- Anti Fingerprint Lacquer : N/A
- Captive Terminal Screws : NO
- Fixing Screws Supplied : YES
- Screw Cap Covers : NO
- Max Load : 45A
- Neon Indicator : YES
