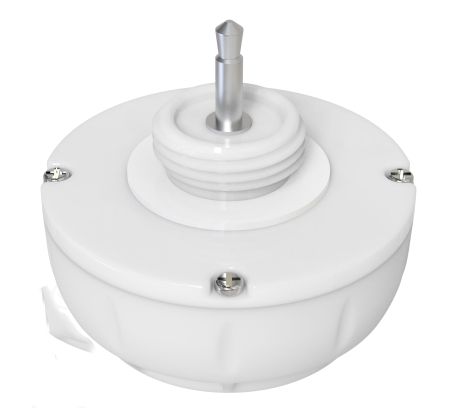

SELECT PRO UFO SPU-MMS Microwave Motion Sensor- Energy-Efficient & Reliable Motion Detection
Product Features
- Low impedance planar antenna; High-gain headphone interface
-
12 meters maximum installation height, suitable for most warehouses
-
Mini Microwave motion detector for High Bay Lights
-
Junction box free design, IP65 waterproof
-
Ultra-low RF power output, harmless to human health
-
Sensor parameters can be adjusted by remote
-
The sensing range is adjustable (high sense/low sense) , suitable for different installation environments
-
Not affected by temperature, humidity, noise, airflow, dust, light etc.
Technical Details
Input
| Rated voltage | 11-13VDC |
| Working current | 24± 3mA |
| Ripple voltage | <100mVp-p |
output
| Output signal | ○√ 0 -10VDC dimming signal |
Sensor parameters
| Working frequency | 5.8GHz ±75MHz, ISM band |
| Transmitting power | 3mW Max. |
| Dimming level | 10%(1.4-1.6V) 20%(1.9-2.1V) 30%(2.9-3.1V) 50% (4.9-5.1V) |
| Detection range (radius) | Ceiling installation 10m high: 0.3m/s ≥ 4m, 1m/s ≥ 3m; |
| Installation height | 10m (12m Max ) |
| 3db beam angle | 82°@XZ plane |
| 95°@YZ plane |
Environment
| Working temperature | -25~60℃ |
| Storage temperature | -40℃ ~80℃, humidity ≤85% (non-condensing) |
Certification standards
| Certified | CE |
| Environmental requirements |
Comply with RoHS 2.0 , Reach requirements |
| IP Rating | IP65 |
Other
| Wiring | Headphone interface |
| Installation requirements | built-in installation |
| Packaging requirements | Clapboard + Carton(K=A) |
| Net weight | 67.7± 3g |
