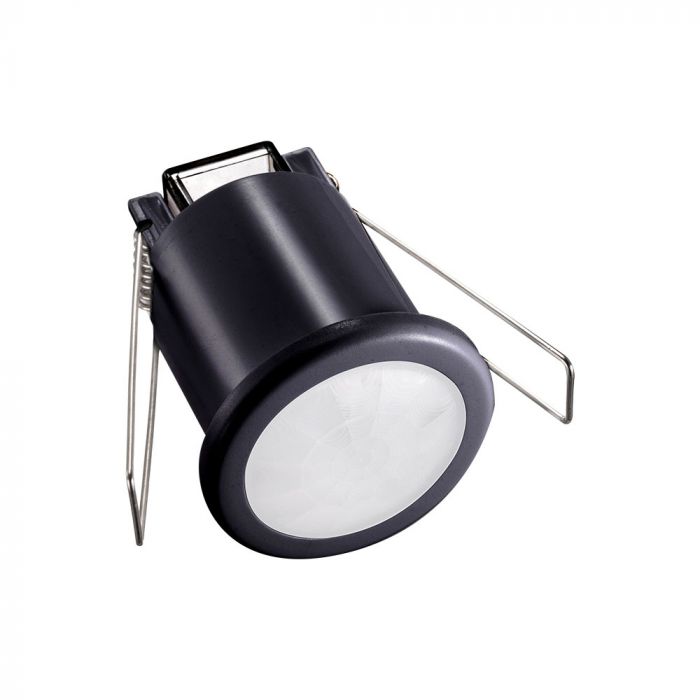

V-Tac VT-8092 PIR CEILING SENSOR-BLACK BODY (MAX:400W LED)
Features:
- Infrared motion sensor with integrated circuit can detect heat signatures
- Adjustable Time Delay - Ambient light - Detection distance for versatile scenarios
- High quality receptors for instant functioning
- Effective system for energy saving and safety
- Compatible with V-TAC models
| IP Rating: | IP20 |

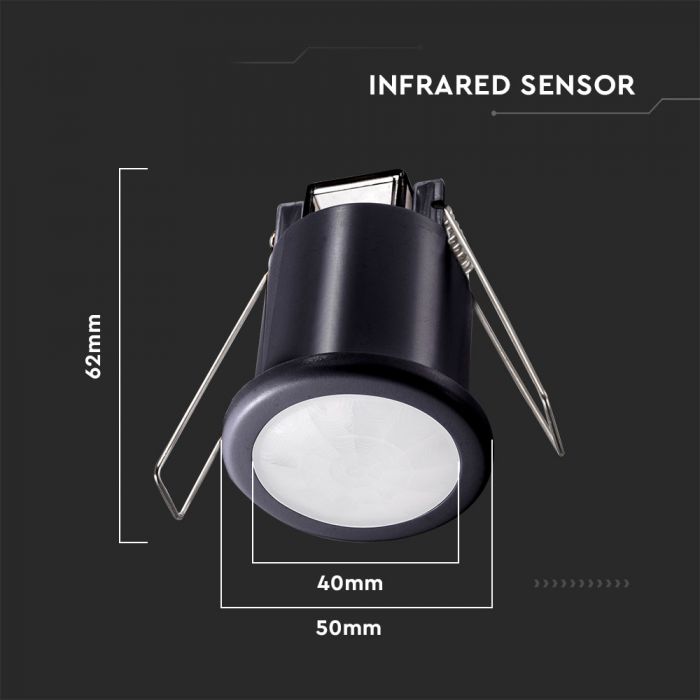

| Dimensions: | 78 (Length) x 61 (Width) x 71(Height) |
| Ambient Light |
<3-2000LUX(adjustable) |
| Ean No.: | 3800157655224 |
| Item Colour: | Black |
| Body Type | PC |
| Installation: | Recessed |
| Input Power |
AC:220-240V, 50/60Hz |
| Sensor type: | Infrared |
| Detection angle: | 360 |
| Detecton distance: | Max. 8m(<24°C) |
| Detection motion speed: | 0.6-1.5m/s |
| Detection range: | 360 ° |

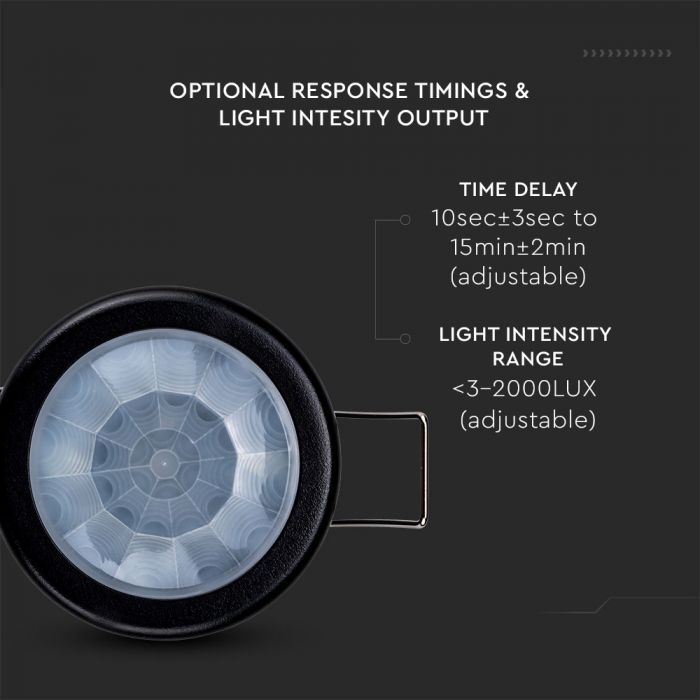

| Time Delay | Min. 10sec±3sec, Max. 15min±2min |
Specification
Input voltage |
AC:220-240V, 50/60Hz |
Installation type |
Recessed |
Lighting mechanism |
LED |
Lighting type |
Motion Sensors |
Shape |
Round |
Unit colour |
White |
Downloads
Download product data sheets
