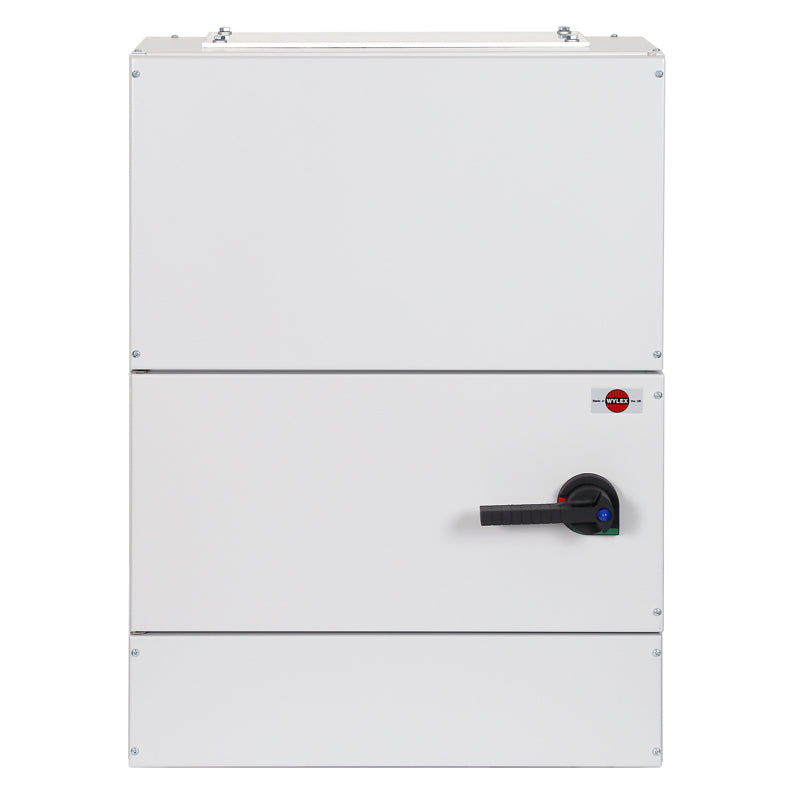

Wylex NHTPSF400 400A 3P+N Fuse Combination Unit
- 400A 3P+N Fuse Combination Unit
- Supplied without fuses. Switch only.
- Painted RAL 7035 steel enclosure.
- Front door reversible, opening to 180 °
- Operating handle can be padlocked.
- Accommodates cable spreading room up to 300mm ² 4 core.
- Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (NHCSB4) is required.
- Voltage rating 415V ac
- Frequency rating 50/60 Hz
- Fuse type BS88
- Dimensions (HxWxD): 800mm x 420mm x 305mm
-
Technical details
Mechanical Endurance 10,000 Fused s/c Current kA RMS 80 Ratings A kW 415V le/pe 400 220 Isolator links NHCIL4
Specification
Amps ii |
400 |
Commercial unit type |
NH Fuse |
Gtin |
5017399184667 |
Regulatory |
BSEN947-3 |
